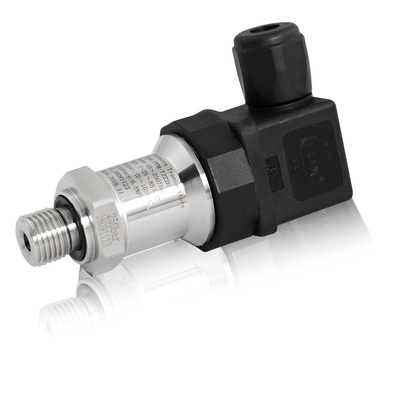

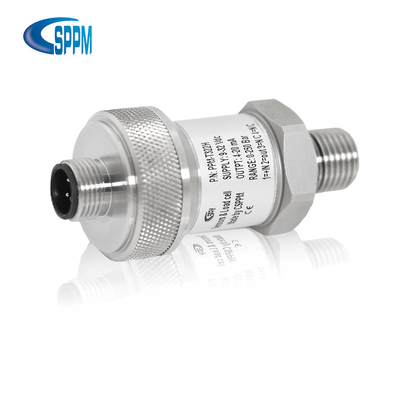

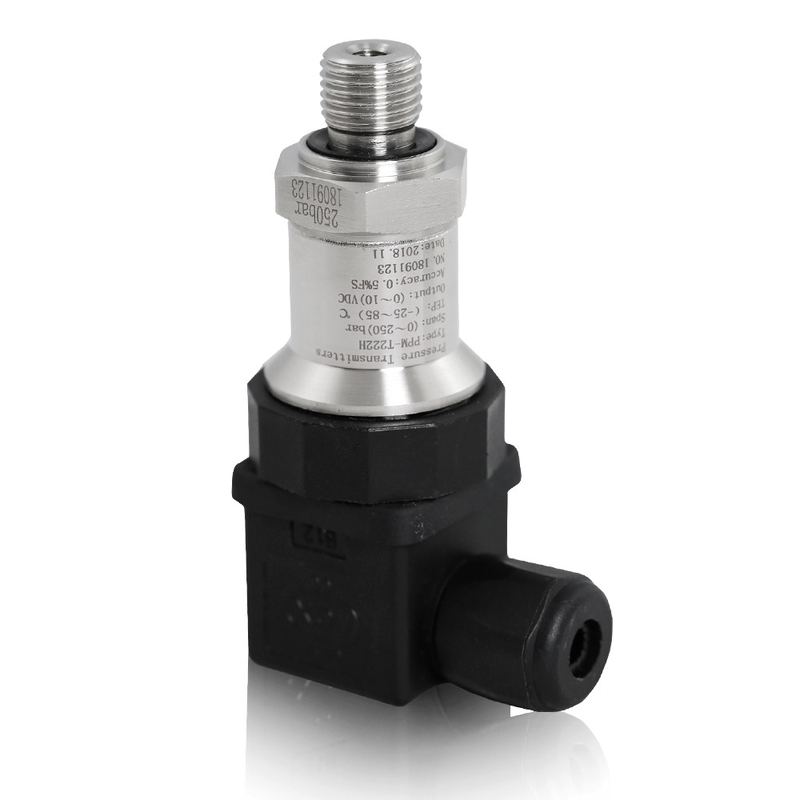

Anti Cavitation 250Bar Industrial Pressure Transmitter For Gas

Anti Cavitation 250Bar Industrial Pressure Transmitter For Gas

Brand Name: CSPPM
Model Number: PPM-T222H
MOQ: 1
Supply Ability: 1000pcs Per Month
Detail Information
Place of Origin:
China
Measured Medium:
Gas, Liquid And Steam (non-corrosive Fluid To 316L Stainless Steel)
Pressure Type:
Sealed Reference Pressure, Ventilator Pressure
Pressure Range:
0 ~ 10bar, 16bar, 25bar, 40bar, 60bar, 160bar, 250bar, 400bar, 600bar, 700bar, 1000bar
Power Supply:
9-32VDC
Built-in Amplifier Output:
4 ~ 20mA, 0 ~ 10VDC, 0 ~ 5VDC, 1 ~ 5VDC, 0.5 ~ 4.5 VDC
Non-linearity:
≤0.25% FS (10bar, 16bar, 25bar) ≤0.05% FS (≥40bar)
Repeatability:
0.1% FS Comprehensive Accuracy: 0.5% FS
Accuracy:
0.5% FS
Long-term Stability:
0.15% FS / Year
Supply Ability:
1000pcs Per Month
High Light:

Anti Cavitation Industrial Pressure Transmitter

,

250Bar Industrial Pressure Transmitter

,

250Bar Gas Pressure Sensor

Product Description

High Performance T222H 0-250Bar Motion Sensor Fuel Transmitter



Product Introduction:

PPM-T222H series pressure transmitter adopts classic strain technology, integrated structure design, withstands frequent pressure shock, vibration, high overload, has a high level of anti-cavitation and liquid hammer capabilities, suitable for various severe heavy industrial environments .



Applications :

Electro-hydraulic servo systems and equipment, hydraulic stations, hydraulic machines, experimental machines, various types of heavy machinery, engineering machinery, agricultural machinery, wind power hydraulic and pneumatic control, engines, internal combustion engines, diesel engines, heat generating units, steam turbines, hydraulic turbines, locomotive braking systems, Hydraulic and pneumatic control equipment, industrial process detection and control.

Technical Parameters :

Measured medium: gas, liquid and steam (non-corrosive fluid to 316L stainless steel)
Pressure type: sealed reference pressure, ventilator pressure
Pressure Range: 0~160bar, 250bar, 400bar , 600bar, 700bar , 1000bar
Power supply: 9-32VDC
Built-in amplifier output: 4 ~ 20mA, 0 ~ 10VDC, 0 ~ 5VDC, 1 ~ 5VDC, 0.5 ~ 4.5 VDC(optional)
Non-linearity: ≤0.2% FS
Repeatability: 0.2% FS
Combined Accuracy: 0.5%FS
Long-term stability: 0.25% FS / year
Working medium temperature: -40 ~ + 85 ℃
Working environment temperature: -40 ~ + 75 ℃
Zero temperature drift: ≤0.03% FS / ℃
Safe overload pressure: 150% FS (1.5 times full scale)
Breaking pressure: 500% FS (5 times full scale)
Connection method: G1 / 4 external thread, M14 × 1.5 external thread or OEM designation
Wetted material: Diaphragm: 17-4PH stainless steel, others: 304 stainless steel
Enclosure protection class: IP67
Electrical output lead: M12 × 1 connector, DIN43650 connector (Hirschmann connector)



Definition of wiring:

Anti Cavitation 250Bar Industrial Pressure Transmitter For Gas 0



Dimensions in mm :

Anti Cavitation 250Bar Industrial Pressure Transmitter For Gas 1
