| Brand Name: | CSPPM |
| Model Number: | PPM-T127H |
| MOQ: | 1 PCS |
| Packaging Details: | Standard export packing, including instructions and certificate |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |

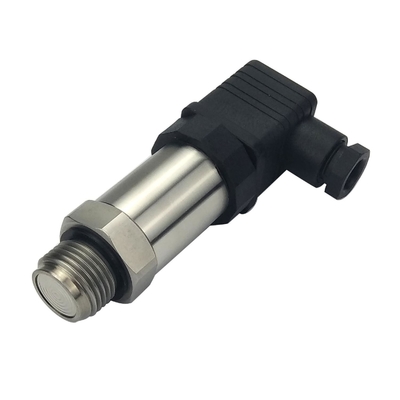

0 ～40MPa PPM-T127H Dairy Product Detection System Pressure Transmitter
Product introduction:
PPM-T127H flat film pressure transmitter is made of stainless steel isolation diaphragm pressure core and high performance intelligent operation compensation circuit. Laser welding technology ensures seamless connection between stainless steel shell and base, suitable for fluid pressure measurement of thick and easy to block slurry, solid-liquid mixing, anti-scaling, anti-blocking, anti-interference, high stability, suitable for a variety of industries on site.
Applications:
Environmental protection chemical coating, polyurethane equipment, paint detection system.
Food slurry, emulsifier, beverage, dairy product detection system
Pressure measurement of other solid-liquid mixtures such as pulp.
Technical Parameters :
| Measured medium : | Non-corrosive gas and liquid to 17-4PH, 316L stainless steel |
| Pressure type: | Sealed Reference Pressure, Ventilator Pressure |
| Pressure Range : |
0 ～ 10KPa… 6MPa… 10MPa… 40MPa
|
| Power supply : | 24VDC (12-32VDC) |
| Output Signal: | 4-20mA, 1-5VDC, 0-5VDC, 0-10VDC are optional |
| Process connections : | M20 X 1.5,G1 / 2 |
| Electrical Connection : | L-connector DIN43650, direct outlet |
| Non-linearity: |
0.05％FS
|
| Repeatability |
0.05％FS
|
| Accuracy : | 0.2% FS,0.5% FS optional |
| Long-term stability | 0.2% FS / year (typical value) |
| Working medium temperature | -20℃ ～ +75 ℃ |
| Working Ambient temperature | -40 ℃ ～ +85 ℃; 250℃ customized |
Definition of wiring:
| Hirschmann Connector | |||
| 2-wire system | 3-wire system | ||
|
Power supply | 1 | 1 |
| Negative power | 2 | 2 | |
| Signal positive | 一 | 3 | |
Dimensions in mm :
|
|
