PPM-WZPB is composed of a temperature sensor and a signal converter. The signal converter is installed in the cold end connecting box of the temperature sensor.

The temperature sensor is affected by the temperature to produce a differential voltage signal.

This signal is amplified by the amplifier, and then through the voltage and current conversion, then produce a 4-20mA current signal or other 0-5V signal.

Technical Parameters :

Model	Thermocouple PPM-WR series, thermal resistor PPM-WZ series
Measure Range	-200 to 1600℃
Power Supply	12-32VDC
Output Signal	4-20mA, 0-5VDC, 0-10VDC optional
Precision	0.1%,0.2%,0.5%, optional
Display Method	LCD or LED display
Operation temperature	-40 to 85℃
Environment Temperature Effect	0.25%/10℃
thermometric element	Pt100,CU50,S,B,R.E,K,J,T optional
Protective tube diameter	Φ4, Φ16, Φ18, Φ20, Φ22, Φ28, Φ35, Φ40 Alternative
connecting	without fixing device, fixed screw-thread, movable screw thread, movable flange, fixed flange GB/ANSI standard, optional
Insert length	50100150200300400500750100 or appointed
Protective tube material	iCr18Ni9Ti, ceramics, High alumina or corundum tube
Nominal pressure	≦20MPa,≦10MPa,≦4.0MPa,≦2.5MPa,
Connecting box material	Cast aluminum alloy, stainless steel, blast proof connection box
Protective level	IP65
Response Time	90s-180s,30s-90s,10s-30s,4.2s,2.4s,1.3s, optional
Environment Humidity	95%RH, Non-condensing

Definition of wiring:

Hirschmann Connector
		2-wire system	3-wire system
	Power supply	1	1
	Negative power	2	2
	Signal positive	一	3
Direct outgoing
		2-wire system	3-wire system
	Power supply	red	red
	Negative power	black	black
	Signal positive	一	green

Dimensions in mm :

Tags:

rtd pt100

pt1000 sensors

infrared temperature sensors

Products Details

Home > Products >

Temperature Transmitter Sensor

Pt100 Thermocouple Temperature Sensor

All Category

Industrial Pressure Sensor

Liquid Level Sensors

Temperature Transmitter Sensor

Load Cell Sensor

Explosion Proof Pressure Sensor

Differential Pressure Transducers

Wireless Pressure Sensor

Oil Analysis Equipment

Digital Process Indicator

TPMS Tire Pressure Sensors

Other Products

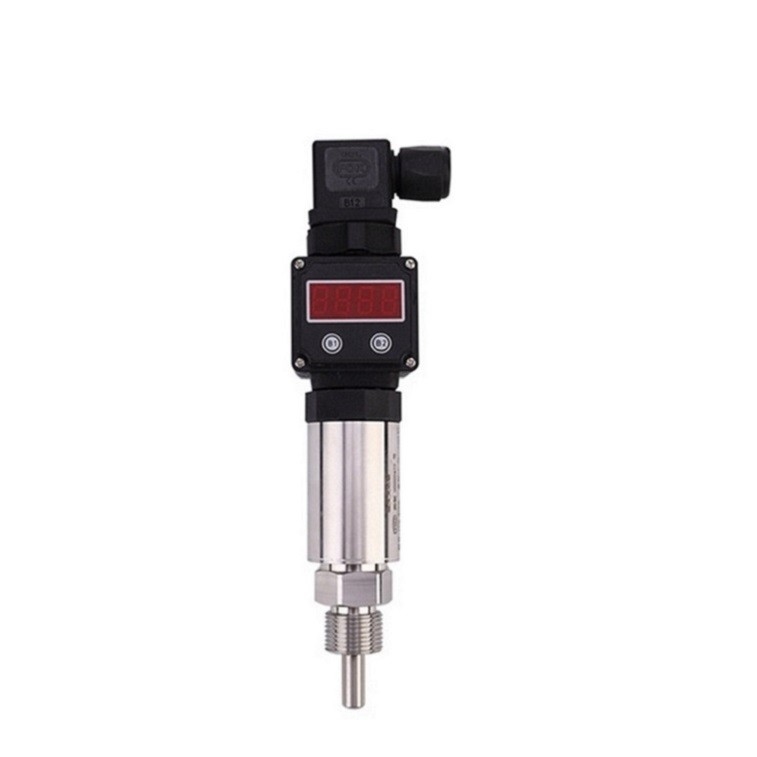

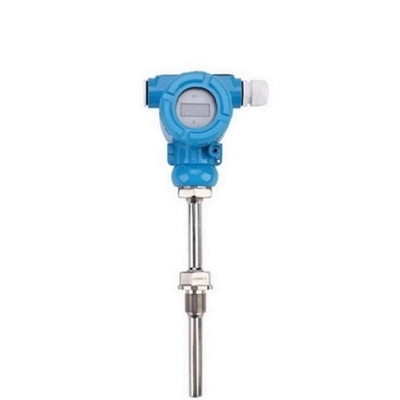

Pt100 Thermocouple Temperature Sensor

Brand Name:	CSPPM
Model Number:	PPM-WZPB
MOQ:	1
Packaging Details:	Standard package

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand Name:

CSPPM

Certification:

Model Number:

PPM-WZPB

Measuring Range:

-200 ～ 650 ℃

Power Supply:

12-32VDC

Output:

4-20mA, 0-5VDC, 0-10VDC Are Optional

Accuracy:

0.2%, 0.5% Optional

Temperature Measuring Element:

Pt100, Pt1000

Process Connection:

G1/4, M20*1.5, Or Other On Request

Installation Length:

10, 25...500 Mm Optional

Minimum Order Quantity:

Packaging Details:

Standard package

Supply Ability:

3000pcs per month
