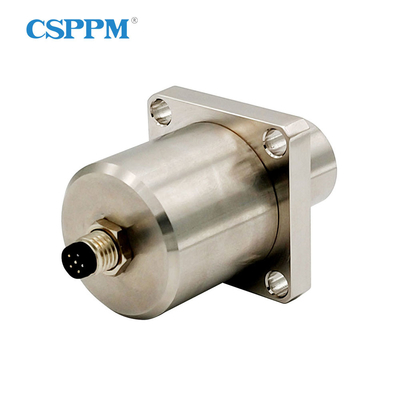

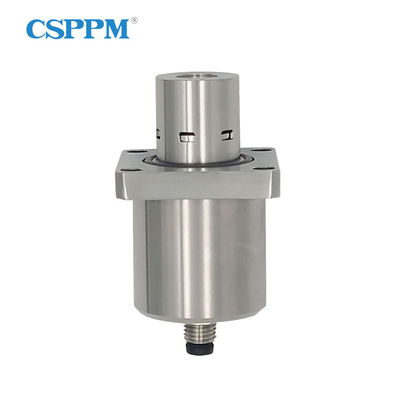

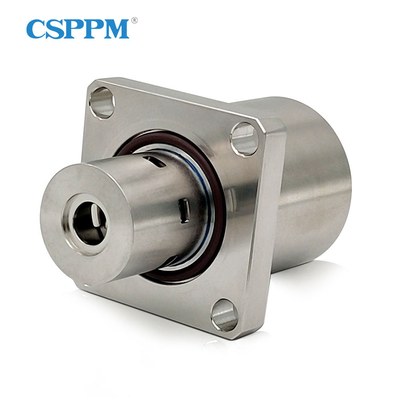

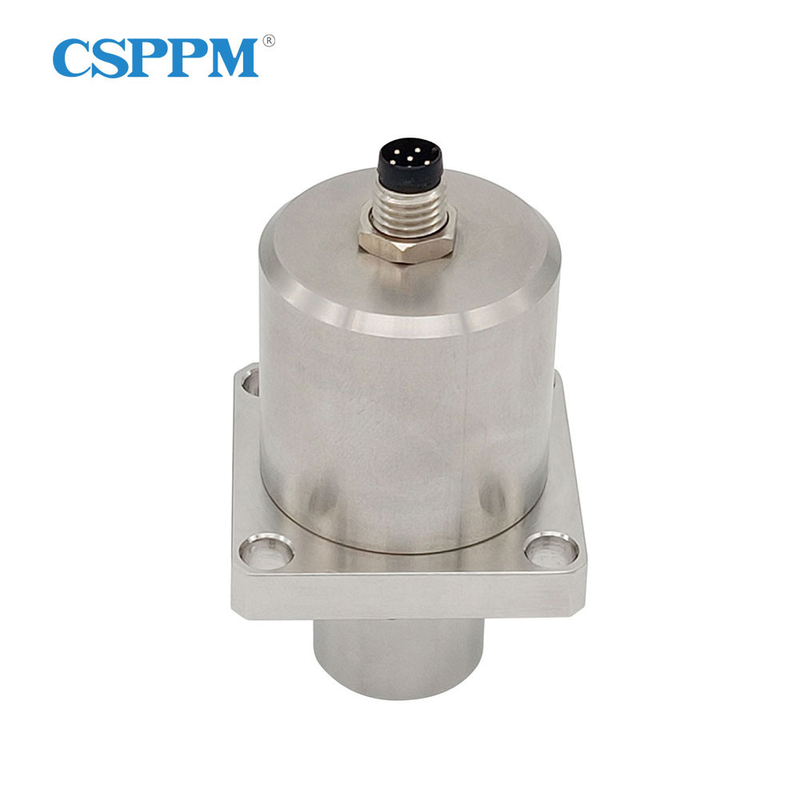

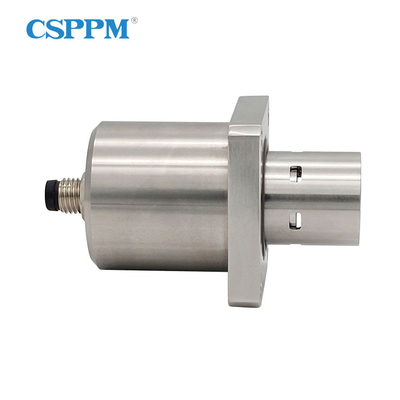

Liquid Generator Hydraulic Steam Gas Oil Water Pressure Sensor 4-20ma

Liquid Generator Hydraulic Steam Gas Oil Water Pressure Sensor 4-20ma

Brand Name: CSPPM
Model Number: PPM-HLV-3
MOQ: 1
Packaging Details: Standard package
Detail Information
Place of Origin:
China
Certification:
CE
Measuring Parameters:
Density(kg/m³), Kinetic Viscosity(mPa·s), Temperature(℃), Dielectric Constant
Signal Output:
Digital Signal: RS485 MODBUS RTU Or RS232
Alarm Points:
2 Points 250VAC/3A Or 30VDC/3A (optional)
Power Supply:
9~32VDC
Process Connection:
NESSI, G1/2’’
Ingress Protection:
IP66
Sealing Material:
FKM Fluorine Rubber
Cable:
2m, M8, 6 Core
Flow Rate:
<1m/s
Pressure Range:
Max 200 Bar
Medium Temperature:
-40~120℃
High Light:

20ma Water Pressure Sensor

,

Liquid Generator Hydraulic Water Pressure Sensor

Product Description

High Quality 4-20ma Liquid Generator Oil Hydraulic Oil Steam Gas Oil Water Pressure Sensor



Description:



The PPM-HLV-3 Sensor adopts MEMS piezoelectric resonance component, with the integration of high accuracy signal sampling and processing unit inside, it can measure density, viscosity and temperature automatically at the same time. Density at 20℃, kinematic viscosity, viscosity index, viscosity at 40℃, viscosity at 100℃, dielectric constant could be measured through it’s calculate program.

Measuring medium: Lubricating oil, hydraulic oil, gasoline, diesel oil, aviation fuel, kerosene, ethanol, printing ink, paint.



Features:



1. Imported probe for real time monitoring online with high accuracy.

2. All stainless steel material adopted, good corrosion resistance and vibration resistance.

3. Quick response, data updating rate less than 1s.

4. Long working life more than 10 years.

5. Small size , easy to install, help to the integration.



Applications:



1. Food processing, Laboratory, Fuel storage and transportation.

2. Oil field, wind power, thermal power;

3. Drilling platform, engineering machinery, truck, Oil filtration system.

4.Printing industry, Medical equipment.



Specifications:



Measuring parameters Density(kg/m³), kinetic viscosity(mPa·s), temperature(℃),dielectric constant
Measuring parameters(optional) Kinematic viscosity, viscosity at 40℃, viscosity at 100℃, viscosity index, density at 20℃
Measuring range

Density:0.6 ~ 1.3g/cm³ or 600~1300 kg/m³

Viscosity: 25~400mPa·s(500mm²/s)

Temperature: -40~+120 ℃

Dielectric constant:1~6

Accuracy(at 23 ℃)

Density: 0.001g/cm³ or 1 kg/m³

Viscosity: 2% or 0.5mPa·s at most

Temperature: 0.3℃

Dielectric constant: ±3%

Resolution

Density: 0.0001g/cm³ or 0.1 kg/m³

Viscosity: 0.1mPa·s

Temperature: 0.1℃

Dielectric constant: 0.01

Response time <30s(first time), data updating rate 1 time/second
Signal output

Digital signal: RS485 MODBUS RTU or RS232

Analog signal: 4~20mA , RL=500Ω (optional)

Alarm points 2 points 250VAC/3A or 30VDC/3A (optional)
Power supply 9~32VDC
Power consumption < 30mA at 24VDC (RS485)
Pressure range ≤ 200 bar
Medium temperature -40~120℃
Ambient temperature -40~85℃
Storage temperature -40~80℃
Housing material SS316 or 304, Hastelloy
Dimension Φ34*90mm
Process connection NESSI, G1/2’’
Weight 0.36kg
Ingress protection IP66
Sealing material FKM fluorine rubber
Cable 2m, M8, 6 core
Flow rate <1m/s
Certification CE, ASTM1657
Ex-proof class EX iaⅡB T6 Ga (optional)





Wiring diagram:

Liquid Generator Hydraulic Steam Gas Oil Water Pressure Sensor 4-20ma 0



Dimension in mm:

Liquid Generator Hydraulic Steam Gas Oil Water Pressure Sensor 4-20ma 1
