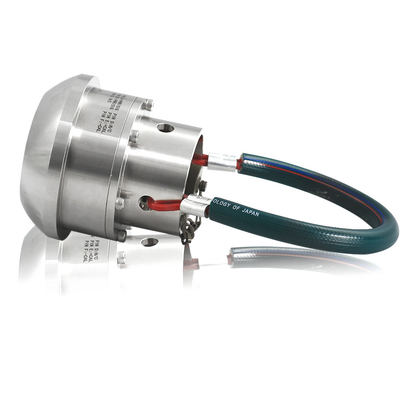

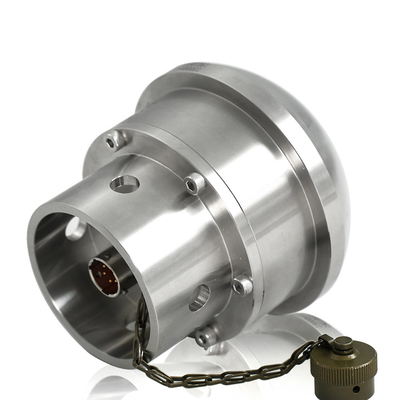

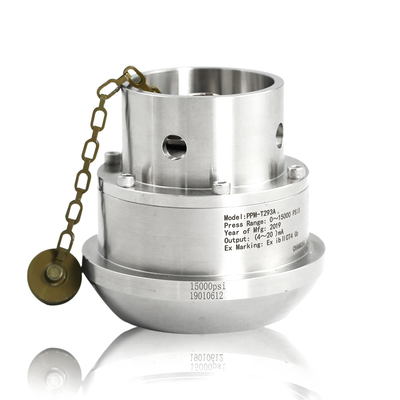

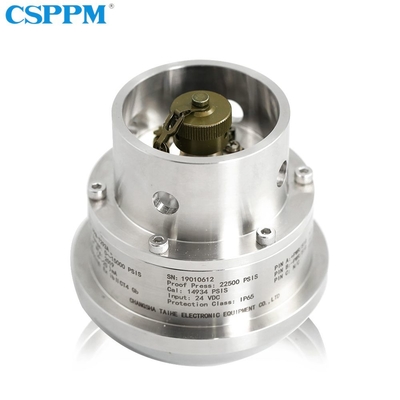

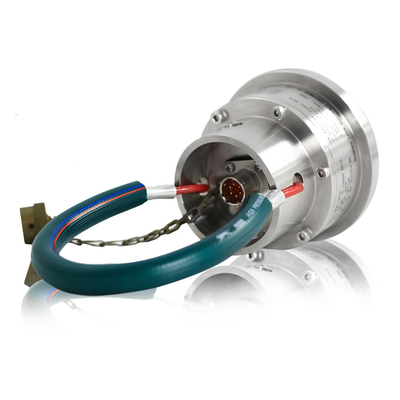

4-20 mA/2-wire Output Pressure Transmitter Sensor for Oil & Gas Drilling

4-20 mA/2-wire Output Pressure Transmitter Sensor for Oil & Gas Drilling

Brand Name: CSPPM
Model Number: PPM-T293A
MOQ: 1pcs
Price: CSPPM
Packaging Details: Standard export packing, including instructions and certificate
Detail Information
Place of Origin:
China
Certification:
CE
Tested Media:
Wet Soil,Oil,Corrosive Liquidand Gas
Pressure Type:
Gauge Pressure(G), Sealed Pressure(S), Vent Pressure(V)
Full Scale Pressure Range:
0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi
Supply Voltage:
10-32VDC
Output Signal:
4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation:
“1502” Hammer Union
Electrical Connection:
Aviation Connector Or Direct Outgoing
Combined Accuracy:
0.5%FS, 0.25%FS
Long-Term Stability:
≤ ± 0.1%FS/Year
Working Medium Temperature:
-40~ +90ºC
Operating Temperature:
-40~ +90ºC
Supply Ability:
1000pcs per month
Product Description

5000/10000/20000 psi High accuracy Water Gas Oil Pressure Sensor Transducer





■ 4-20 mA, 2-wire Output

■ 0.25% Accuracy

■ Shock & Vibration Resistant

■ Zero & Span Adjustments

■ All-welded Construction





Applications

■ Oil & Gas Drilling

■ Mud Pumps / Mud Logging

■ Fracturing

■ Acidizing

■ Cementing

■ Standpipe

■ Stimulation

■ Well Head Measurement

■ Choke & Kill

■ Coiled Tubing



Technical Parameters :

Tested Media : Wet Soil,Oil,Corrosive liquidand gas
Pressure type: Gauge pressure(G), Sealed pressure(S), Vent Pressure(V)
Full Scale Pressure Range : 0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi.
Supply Voltage : 10-32VDC
Output Signal: 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation : “1502” Hammer Union
Electrical Connection : Aviation connector or Direct outgoing
Combined Accuracy : 0.5%FS, 0.25%FS
Long-Term Stability: ≤ ± 0.1%FS/Year
Working medium temperature : -40~ +90ºC
Operating Temperature : -40~ +90ºC



Definition of wiring:

4-20 mA/2-wire Output Pressure Transmitter Sensor for Oil & Gas Drilling 0

4-20 mA/2-wire Output Pressure Transmitter Sensor for Oil & Gas Drilling 1





Dimensions in mm :

4-20 mA/2-wire Output Pressure Transmitter Sensor for Oil & Gas Drilling 2
