Accurate 15000psi Pressure Sensor Transducer for Fracturing & Stimulation

Accurate 15000psi Pressure Sensor Transducer for Fracturing & Stimulation

Brand Name: CSPPM
Model Number: PPM-T293A
MOQ: 1pcs
Price: CSPPM
Packaging Details: Standard export packing, including instructions and certificate
Detail Information
Place of Origin:
China
Certification:
CE
Tested Media:
Wet Soil,Oil,Corrosive Liquidand Gas
Pressure Type:
Gauge Pressure(G), Sealed Pressure(S), Vent Pressure(V)
Full Scale Pressure Range:
0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi
Supply Voltage:
10-32VDC
Output Signal:
4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation:
“1502” Hammer Union
Electrical Connection:
Aviation Connector Or Direct Outgoing
Combined Accuracy:
0.5%FS, 0.25%FS
Long-Term Stability:
≤ ± 0.1%FS/Year
Working Medium Temperature:
-40~ +90ºC
Operating Temperature:
-40~ +90ºC
Supply Ability:
1000pcs per month
Product Description

5000/10000/20000 psi High accuracy Water Gas Oil Pressure Sensor Transducer





■ 4-20 mA, 2-wire Output

■ 0.25% Accuracy

■ Shock & Vibration Resistant

■ Zero & Span Adjustments

■ All-welded Construction

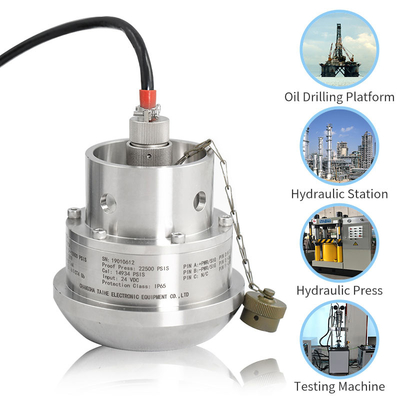

Applications

■ Oil & Gas Drilling

■ Mud Pumps / Mud Logging

■ Fracturing

■ Acidizing

■ Cementing

■ Standpipe

■ Stimulation

■ Well Head Measurement

■ Choke & Kill

■ Coiled Tubing



Technical Parameters :

Tested Media : Wet Soil,Oil,Corrosive liquidand gas
Pressure type: Gauge pressure(G), Sealed pressure(S), Vent Pressure(V)
Full Scale Pressure Range : 0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi.
Supply Voltage : 10-32VDC
Output Signal: 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation : “1502” Hammer Union

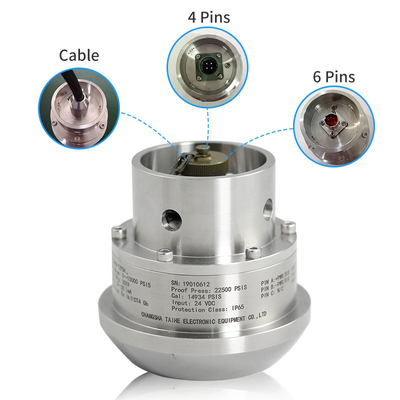

Electrical Connection : Aviation connector or Direct outgoing
Combined Accuracy : 0.5%FS, 0.25%FS
Long-Term Stability: ≤ ± 0.1%FS/Year
Working medium temperature : -40~ +90ºC
Operating Temperature : -40~ +90ºC



Definition of wiring:

Accurate 15000psi Pressure Sensor Transducer for Fracturing & Stimulation 0

Accurate 15000psi Pressure Sensor Transducer for Fracturing & Stimulation 1

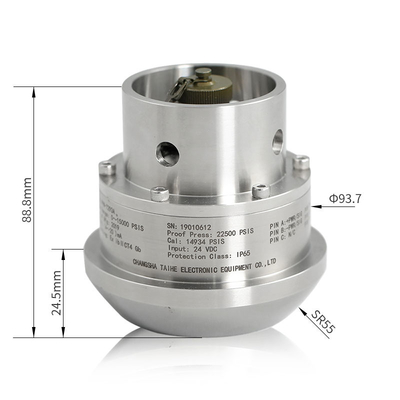

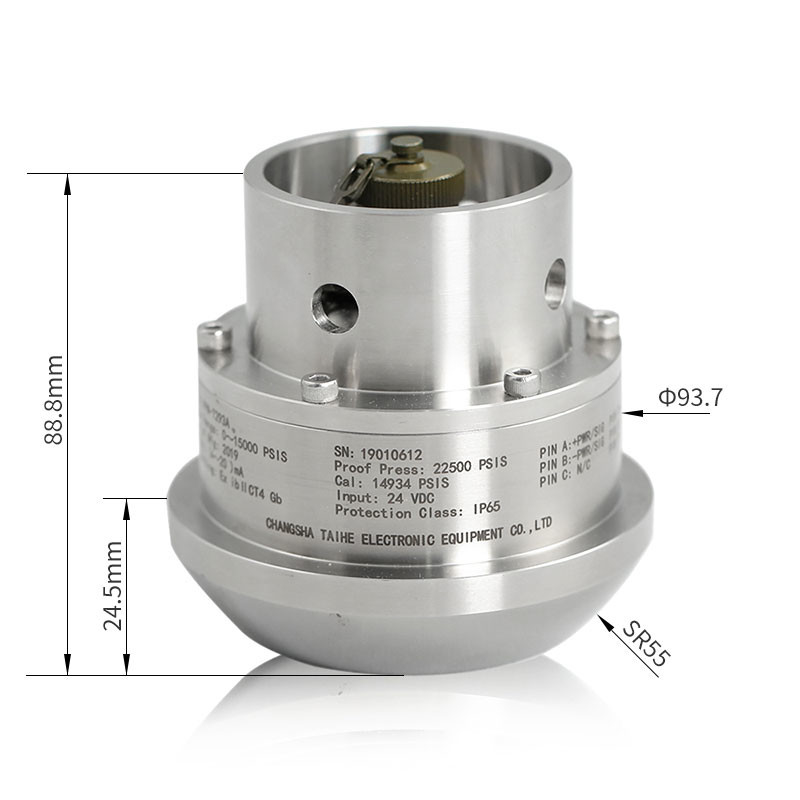

Dimensions in mm :

Accurate 15000psi Pressure Sensor Transducer for Fracturing & Stimulation 2



Tagshammer union pressure sensorload cell sensor , oil moisture sensor




What is a Pressure Sensor Transformer?

A pressure sensor transformer is a device that converts the pressure measurement from a pressure sensor into an electrical signal that can be used by various electronic devices. It is typically a small, compact unit that is attached to a pressure sensor and uses electromagnetic induction to convert the physical pressure into an electrical signal. This signal can then be amplified, conditioned, and transmitted to a control system for further processing and analysis.



How does the Pressure Sensor Transformer convert pressure signals into electrical signals?

The working principle of a pressure sensor transformer is to use a converter to convert one form of energy into another, converting pressure signals into electrical signals. It contains a diaphragm or membrane that is sensitive to pressure. When the diaphragm is exposed to pressure, it will deflect, causing a change in the resistance of the transducer. Then, this resistance change is converted into an electrical signal through a converter, which can be transmitted and processed by a transformer.



Transformers amplify and filter electrical signals to ensure accurate measurement and eliminate any interference or noise. Then, according to the application, the signal is converted into digital or analog format for further processing or display.
