| Brand Name: | CSPPM |
| Model Number: | PPM-T293A |
| MOQ: | 1 |

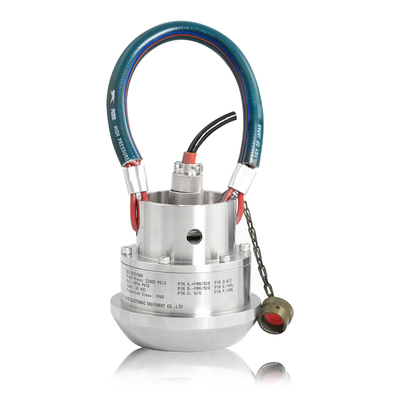

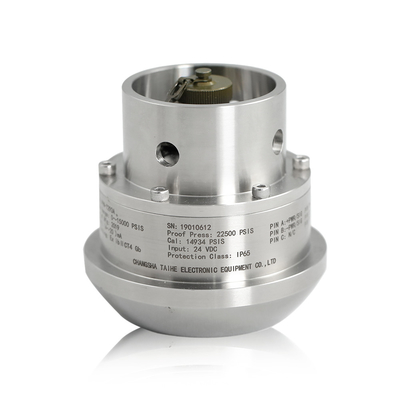

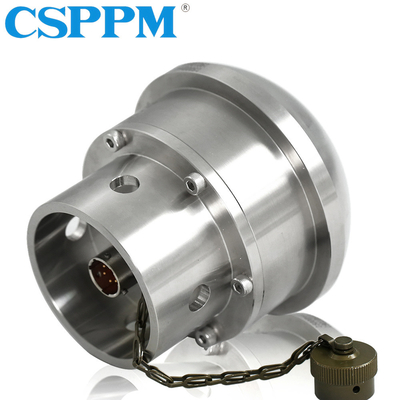

Hammer Union Sensor
Product introduction:
PPM-T293A special sensor for fracturing truck adopts imported high-quality elastomer and digital processing chip, stainless steel overall package, good moisture-proof and sealing, and has passed thousands of fatigue impact tests before leaving the factory. It has fast dynamic response, high accuracy, anti-vibration and anti-fatigue. , Strong anti-eccentricity, strong structure, corrosion resistance and other characteristics; the product uses a spherical seal, easy installation, easy to use. Provide customized services.
Applications
Oil well drilling and servicing, Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing, Service and Cement Trucks, Standpipe.
Technical Parameters :
| Tested Media : | Wet Soil,Oil,Corrosive liquidand gas |
| Pressure type: | Gauge pressure(G), Sealed pressure(S), Vent Pressure(V) |
| Full Scale Pressure Range : | 0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi. |
| Supply Voltage : | 10-32VDC |
| Output Signal: | 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V |
| Installation : | “1502” Hammer Union |

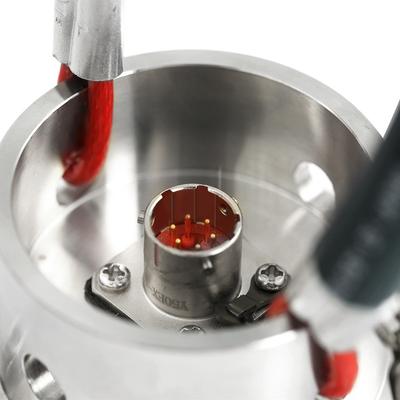

| Electrical Connection : | Aviation connector or Direct outgoing |
| Combined Accuracy : | 0.5%FS, 0.25%FS |
| Long-Term Stability: | ≤ ± 0.1%FS/Year |
| Working medium temperature : | -40~ +90ºC |
| Operating Temperature : | -40~ +90ºC |
Dimensions in mm :
Definition of wiring:
|
|
