28VDC 20mA Engine Oil Quality Sensor Accuracy 0.3 Degree

28VDC 20mA Engine Oil Quality Sensor Accuracy 0.3 Degree

Brand Name: CSPPM
Model Number: PPM-HLF-2
MOQ: 1
Packaging Details: Standard package
Detail Information
Place of Origin:
China
Certification:
CE
Oil Quality:
1~6
Accuracy:
0.3ºC
Oil Temperature:
-40~120ºC
Signal Output:
4~20mA, RS485, CAN (optional)
Power Supply:
12~28VDC, <20mA Load Current
High Light:

20mA Engine Oil Quality Sensor

,

28VDC Engine Oil Quality Sensor

,

20mA Oil Quality Sensor

Product Description

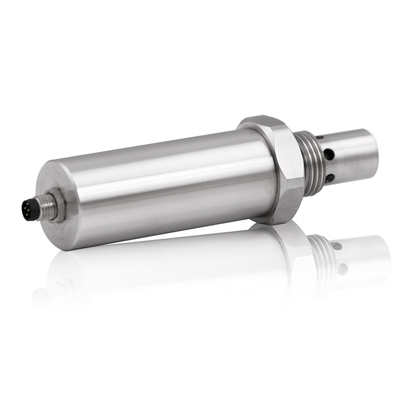

PPM-HLF-2 online oil quality sensor



Description


PPM-HLF-2 is especially designed for online monitoring oil quality. With special measuring technology adopted, the sensor is extremely sensitive to oil quality changes and able to real-time measure different kinds of oil. The PPM-HLF-2 will help you decrease failure of equipment and protect the equipment.
Measuring medium: Lubricating oil, hydraulic oil, gasoline, diesel oil, aviation fuel, kerosene, ethanol, printing ink, paint.



Features

  • High sensitive to various kinds of pollution in oil.
  • High resolution up to 10-15
  • Worldwide business and technical certification such as CE, ASTM1657.
  • Long service life more than 10 years.

Applications

  • Food processing, Laboratory, Fuel storage and transportation.
  • Oil field, wind power, thermal power;
  • Drilling platform, engineering machinery, truck, Oil filtration system.
  • Printing industry, Medical equipment.

Specification:



Oil quality 1~6
Accuracy ±3%
Oil temperature -40~120ºC
Accuracy 0.3ºC
Measuring Oil Most of Mineral oil, Synthetic oil, Semi synthetic oil
Measuring parameter Oxidizing agent, water, impurity, acid value, base number, Wear particle, viscosity change, oil temperature
Signal Output

4~20mA, RS485, CAN (optional)

Power supply

12~28VDC, <20mA load current

Pressure range <10bar
Operating temperature -40~85ºC
Process connection G1/2'' BSP

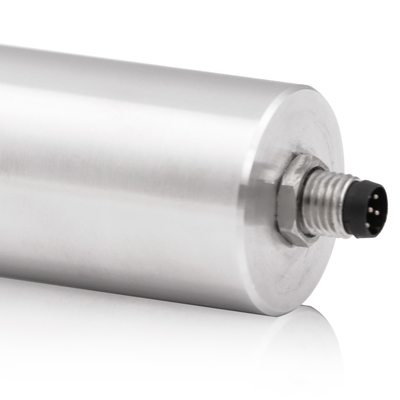

Electric connection M8*1, 6 core
Cable 6 core, 2m, UL20866, 6*22AWG
EMC EN 61000-6-4: 2007EN 61000-6-2:2005
Housing material Stainless steel 316
Ingress protection IP 66
Weight 0.25kg



Dimension in mm

28VDC 20mA Engine Oil Quality Sensor Accuracy 0.3 Degree 0

Wiring connection:



28VDC 20mA Engine Oil Quality Sensor Accuracy 0.3 Degree 1
