| Brand Name: | CSPPM |
| Model Number: | PPM232-XT |
| MOQ: | 1 |
| Packaging Details: | Standard package |

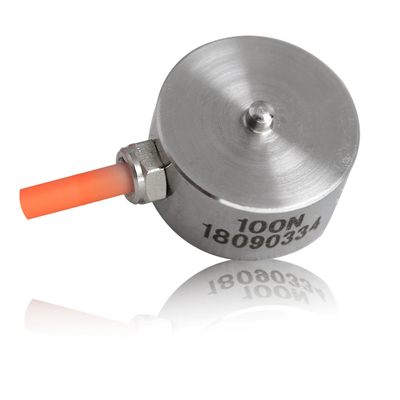

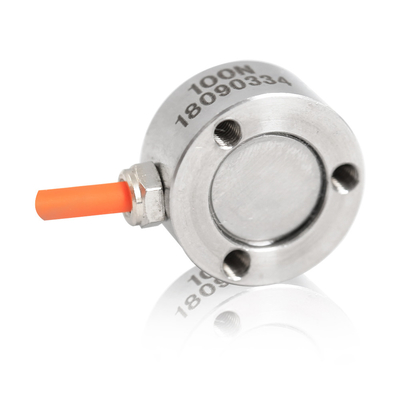

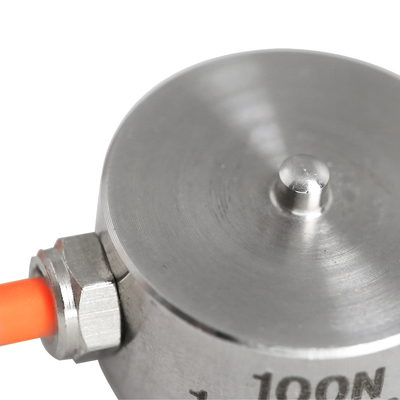

PPM232-XT Miniature Pull Load Cell
Product introduction:
Miniature tension and pressure sensors and miniature load cells adopt a micro-small precision design. The steel integrated structure has high protection performance. It is mainly used for occasions with limited space. Can be customized diameter. 8 to medium 15, height 3 to 10mm different size sensors. Can measure tension, pressure, tension, can be used with a display transmitter and measurement and control system connection.
Specification :
| Capability | 0.1~20 kN |
| Comprehensive precision | 0.5%FS |
| Sensitivity | 1.0~1.5 mV/V |
| Creep | ±0.05%FS/30min |
| Zero Output | ±1%FS |
| Temperature effect on zero | ±0.05%FS/10℃ |
| Temperature effect on output | ±0.05%FS/10℃ |
| Operating temperature range | -20℃~+65℃ |
| Input resistance | 350±20Ω |
| Output resistance | 350±3Ω |
| Insulation resistance | ＞5000MΩ |
| Safe overload | 150%FS |
| Bridge voltage | 10V DC |
| Material | Stainless steel |
| Protection class | IP 65 |
| Electronic connection |
Input+: Red Input-:Black Output+: Green Output-:White |
Dimensions in mm :
|
|
