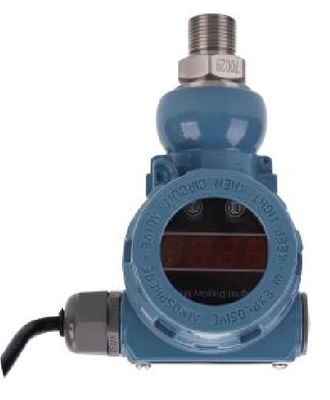

M20 × 1.5 Explosion Proof Pressure Sensor CE Sputtering Film Pressure Transmitter

M20 × 1.5 Explosion Proof Pressure Sensor CE Sputtering Film Pressure Transmitter

Brand Name: CSPPM
Model Number: PPM-T332B
MOQ: 1 PCS
Packaging Details: Standard export packing, including instructions and certificate
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Measured Medium:
Liquid, Gas And Steam
Pressure Type:
Sealed Reference Pressure, Ventilation Gauge Force
Pressure Range:
0~6bar, 16bar, 20bar, 50bar, 160bar, 250bar, 400bar, 600bar, 800bar, 1000bar, 1600bar 2000bar, 2500barr, 3000bar
Power Supply:
9V~36VDC
Output Signal:
4~20mA
Mounting Thread:
M20 × 1.5, G1 / 2, 1 / 2NPT, 1 / 4NPT, G1 / 4 Other Customization
Electrical Interface:
M20 × 1.5 Outlet
Non-linearity:
≤0.05% FS
Repeatability:
0.1% FS
Long-term Stability:
0.15% FS / Year
Supply Ability:
1000 pcs per month
High Light:

M20 × 1.5 Explosion Proof Pressure Sensor

,

CE Explosion Proof Pressure Sensor

,

CE Sputtering Film Pressure Transmitter

Product Description

PPM-T332B Sputtering Film Pressure Transmitter



Product Introduction:

PPM-T332B sputtering film pressure transmitter adopts ion beam sputtering film technology, integrated structure, high-sensitivity pressure core, with high accuracy, large output signal, long working life, wide applicable temperature range, and long-term stability , Low power consumption, no hysteresis, good repeatability and so on. Withstands frequent pressure shocks and vibrations, and is more than 5 times pressure overload, mainly used in high-end industrial sites and military equipment. Our technical team can also provide you with product customization services.



Applications :

Petroleum, chemical, water conservancy, metallurgy, power Light industry, textile, building materials, hydrogeology, Food, medicine, environmental protection and other industries Pressure measurement of gas, liquid and steam in industrial field monitoring and control.



Technical Parameters :

Measured medium: liquid, gas and steam
Pressure type: Sealed Reference Pressure, Ventilation Gauge Force
Pressure Range: 0~6bar, 16bar, 20bar, 50bar, 160bar, 250bar, 400bar, 600bar, 800bar, 1000bar, 1600bar
2000bar, 2500barr, 3000bar
Power supply: 9V~36VDC
Output signal: 4~20mA
Mounting thread: M20 × 1.5, G1 / 2, 1 / 2NPT, 1 / 4NPT, G1 / 4 Other customization.
Electrical interface: M20 × 1.5 outlet
Non-linearity: ≤0.05% FS
Repeatability: 0.1% FS
Long-term stability: 0.15% FS / year
Accuracy : ± 0.5% FS (-43 ℃ ~ + 125 ℃)
Working medium temperature: -45 ℃ ~ + 155 ℃
Working environment temperature: -43 ℃ ~ + 135 ℃



Definition of wiring:

Direct outgoing
  2-wire system 3-wire system
M20 × 1.5 Explosion Proof Pressure Sensor CE Sputtering Film Pressure Transmitter 0 Power supply red red
Negative power black black
Signal positive green



Dimensions in mm :

M20 × 1.5 Explosion Proof Pressure Sensor CE Sputtering Film Pressure Transmitter 1
