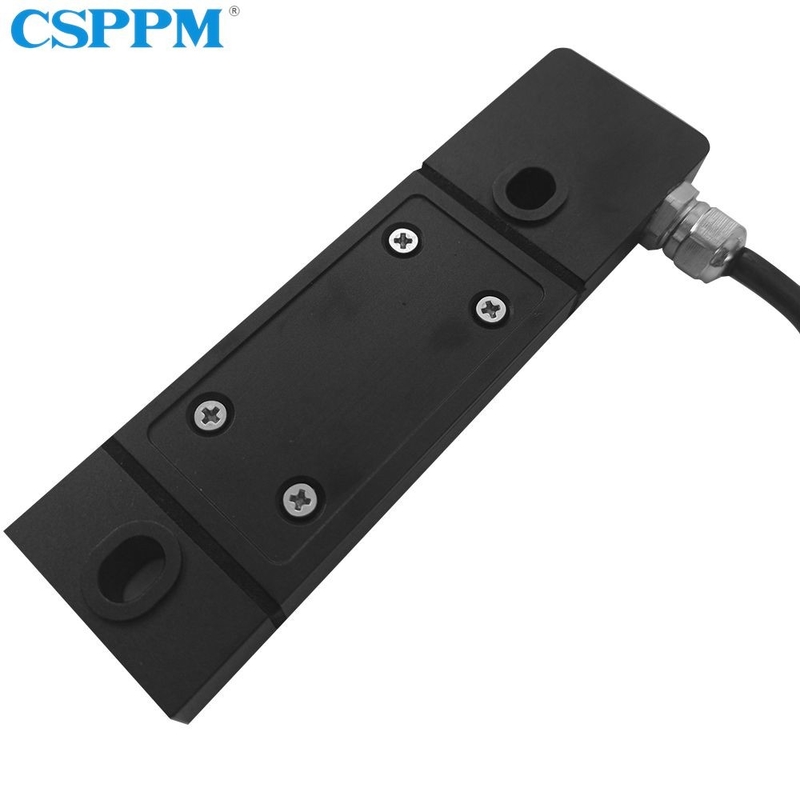

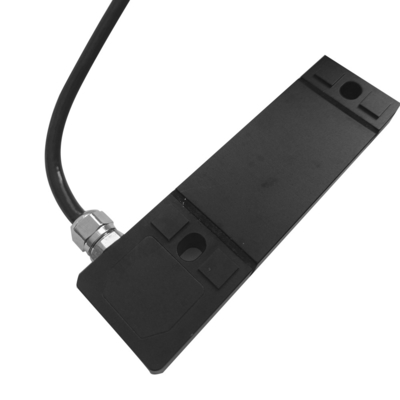

PPM-YB-3000 Strain Sensor

PPM-YB-3000 Strain Sensor

Brand Name: CSPPM
Model Number: PPM-YB-3000
MOQ: 1 PCS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per month
Detail Information
Place of Origin:
China
Certification:
CE
Measuring Type:
Micro Strain, Linear Deformation
Measuring Range:
±3000με
Power Supply:
5VDC
Output Signal:
Mv
Nonlinearity:
≦0.015%FS
Repeatability:
≦0.02%FS
Accuracy:
Accuracy Error:≤2%FS
Long-term Stability:
≦0.5%FS/Year
Operation Temp:
-25℃—85℃
Zero Temp. Drift:
≦0.3%FS
Supply Ability:
1000 pcs per month
Product Description

Product Introduction:

The product with high-quality aviation aluminum and high-precision resistance strain gauges, it's processed by high-low temperature aging and thousands of pressure fatigue test treatments, and outputs mV signals.

A:Housing, Material, Aluminium Alloy

B:Surface treatment, anodizing (black)

C: High stability, low temperature of product

D: Easy installation and maintenance

E: Electrical connections, Gasket lock,Ingress protection IP65



Applications :

Bridge, dam, road and other steel structure or concrete surface stress measurement,

measurement of linear deformation and stress of installation points.



Technical Parameters :

Measuring type Micro strain, linear deformation
Measuring range ±3000με
Power supply 5VDC
Output signal mv
Nonlinearity ≦0.015%FS
Repeatability ≦0.02%FS
Accuracy Accuracy error:≤2%FS
Long-term stability ≦0.5%FS/Year
Operation temp -25℃—85℃
Zero temp. drift ≦0.3%FS
FS temp. drift ≦0.3%FS
Response time <3ms
Output impedance 1KΩ
Insulation resistance >1000MΩ/100VDC
Overpressure 120%FS
Damage pressure >300FS
Materials 7075Aluminium Alloy
Ingress protection IP65
Electrical connections Cable connection



Definition of wiring:

PPM-YB-3000 Strain Sensor 0



Dimensions in mm :

PPM-YB-3000 Strain Sensor 1
