IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor

IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor

Brand Name: CSPPM
Model Number: PPM-HLW-2A
MOQ: 1
Packaging Details: Standard package
Detail Information
Place of Origin:
China
Certification:
CE
Water Measuring Range:
0~1 Aw
Temperature Measuring Range:
-40~+80℃
Digital Output Signal:
RS485 MODBUS, RS232 Available
Analog Output Signal:
4~20mA, 0~20mA Resistance Load <500Ω
Process Connection:
G1/2’’ ISO, 1/2’’ NPT
Pressure Range:
100 Bar
Material:
Stainless Steel 316L
Power Supply:
9~36V DC, Load Current<5mA
Electric Connection:
M8*1, 6 Core Cable, 2m
Ingress Protection:
IP 66
High Light:

36V DC Oil Moisture Sensor

,

IP66 Oil Moisture Sensor

,

IP66 Oil Condition Sensor

Product Description

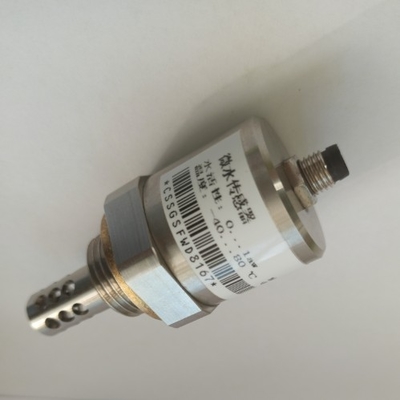

PPM-HLW-2A Online Micro water Sensor for Oil



Description

The PPM-HLW-2A adopts advanced water content sensitive element and temperature sensitive element, it can measuring water content, water activity and temperature in harsh environment continuously, accurately, fast.

Measuring oil: lubricant oil, hydraulic oil, engine oil, fuel, insulating oil, turbine oil, etc.

Features

1. Measuring water activity of oil fast and continuously;

2. Measuring water content accurately;

3. High stability in harsh area;

4. Small in size.

Specifications

Water activity
Measuring range 0~1 aw
Accuracy 0~0.6±0.02 aw
0.6~0.9±0.03 aw
0.9~1±0.04aw
Response time < 1 min
Water content
Measuring range 0~3000 ppm
Measuring range ±10%
Temperature
Measuring range -40~+80℃
Accuracy ±0.2℃
Operating temperature -40~+60℃
Storage temperature -40~+80℃
Oil temperature permitted -40~+120℃
Output signal
Digital output signal RS485 MODBUS, RS232 available
Analog output signal 4~20mA, 0~20mA resistance load <500Ω
Others
Process connection G1/2’’ ISO, 1/2’’ NPT
Pressure range 100 bar
Material Stainless Steel 316L

Ingress protection

IP 66
Power supply 9~36V DC, load current<5mA
Weight 200g
Electric connection M8*1, 6 core cable, 2m
Certification CE, EN61326 EN61326-2-3 ICES-003B



Wiring diagram:

IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor 0

Dimension in mm:

IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor 1
