| Brand Name: | CSPPM |
| Model Number: | PPM-HLF-2 |
| MOQ: | 1 |
| Packaging Details: | Standard package |

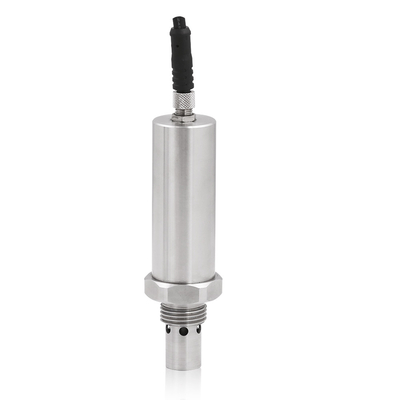

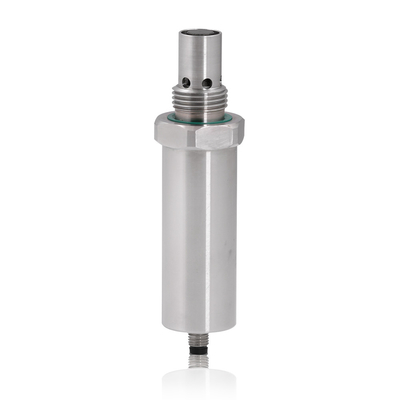

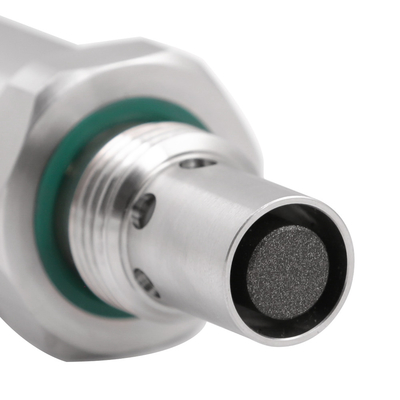

PPM-HLF-2 Online monitoring oil quality sensor
Description:
PPM-HLF-2 is especially designed for online monitoring oil quality. With special measuring technology adopted, the sensor is extremely sensitive to oil quality changes and able to real-time measure different kinds of oil. The PPM-HLF-2 will help you decrease failure of equipment and protect the equipment.
Measuring medium: Lubricating oil, hydraulic oil, gasoline, diesel oil, aviation fuel, kerosene, ethanol, printing ink, paint.
Features:
Applications:
Specification:
| Oil quality | 1~6 |
| Accuracy | ±3% |
| Oil temperature | -40~120ºC |
| Accuracy | 0.3ºC |
| Measuring Oil | Most of Mineral oil, Synthetic oil, Semi synthetic oil |
| Measuring parameter | Oxidizing agent, water, impurity, acid value, base number, Wear particle, viscosity change, oil temperature |
| Signal Output | 4~20mA, RS485, CAN (optional) |
| Power supply | 12~28VDC, <20mA load current |
| Pressure range | <10bar |
| Operating temperature | -40~85ºC |
| Process connection | G1/2'' BSP |
| Electric connection | M8*1, 6 core |
| Cable | 6 core, 2m, UL20866, 6*22AWG |
| EMC | EN 61000-6-4: 2007EN 61000-6-2:2005 |
| Housing material | Stainless steel 316 |
| Ingress protection | IP 66 |
| Weight | 0.25kg |
Wiring diagram:
Dimension in mm:
|
|
