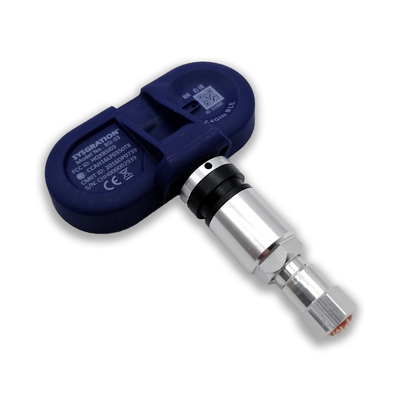

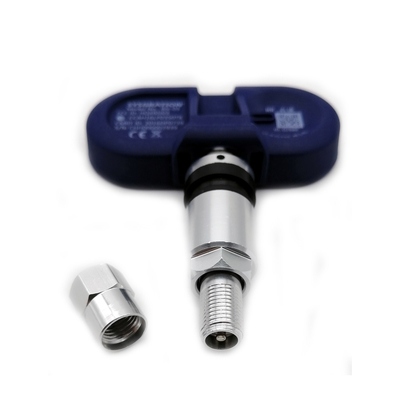

2.4GHz 3V TPMS Tire Pressure Sensors For Car Engine

Name: 2.4GHz 3V TPMS Tire Pressure Sensors For Car Engine
Brand: CSPPM
SKU: BSI03+TA86
Rating: 4.7 (147 reviews)

Brand Name:	CSPPM
Model Number:	BSI03+TA86
MOQ:	1
Packaging Details:	Standard export packing, including instructions and certificate
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Operating Voltage:

Operating Humidity:

95 % MAX

Operating Current:

＜15 MA At DC 3V

Storage Temperature:

-40℃ To 85 ℃

Operating Temperature:

-20℃ To 85 ℃

Monitored Pressure Range:

Passenger: 0 To 92 Psi (0 To 640 KPa) Truck: 0 To 185 Psi (0 To 1280 KPa)

Monitored Temperature Range:

-20 ℃ To 85 ℃

Operating Frequency:

2.4GHz

Transmission Power:

4 DBm MAX

Battery Life:

3 Years (under Normal Operating Condition)

Battery Capacity:

540 MAh

Weight:

24g (body) +14g (valve)

Supply Ability:

1000 pcs per month

High Light:

2.4GHz TPMS Tire Pressure Sensors

3V TPMS Tire Pressure Sensors

3V Tire Pressure Monitoring Sensor

Product Description

Excellent Quality Car Engine Parts Tire Pressure Monitoring Sensor

Product Paramenters

BLE Sensor Specification

Operating Voltage	3V
Operating Humidity	95 % MAX
Operating Current	＜15 mA at DC 3V
Storage Temperature	-40℃ to 85 ℃
Operating Temperature	-20℃ to 85 ℃
Monitored Pressure Range	Passenger: 0 to 92 psi (0 to 640 kPa) Truck: 0 to 185 psi (0 to 1280 kPa)
Monitored Temperature Range	-20 ℃ to 85 ℃
Operating Frequency	2.4GHz
Transmission Power	4 dBm MAX
Battery Life	3 years (under normal operating condition)
Battery Capacity	540 mAh
Weight	24g (body) +14g (valve)

Voice Alert Display Specification

Operating Voltage	DC 12V/24V
Operating Humidity	90％ MAX
Operating Temperature	-20℃ to 70℃
Storage Temperature	-25℃ to 85℃
Operating Current	0.25A@12V, 0.2A@24V
Sound Pressure (min.)	85dB@15cm
Battery voltage detector	DC 5V~32V, ±0.1V
Operating Frequency	2.4GHz
Receiving sensitivity	< -85dBm
RF Transmitter Power	4dBm MAX
View angle	12 O’Clock
Weight	33±2g

Installation
