| Brand Name: | CSPPM |
| Model Number: | PPM-TC1CT |
| MOQ: | 1 |
| Packaging Details: | Standard export packing, including instructions and certificate |
| Payment Terms: | L/C, T/T |

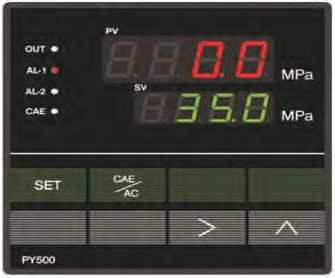

Series Water Jet Dedicated Pressure Indicator
Product introduction:
Designed for water jet, stable pressure display and accurate alarm
0.1 level measurement accuracy, display range: -1999-9999
Used with pressure sensor, only measure pressure, sampling speed is 50 times / second
Relay output, current output, voltage output,
RS485, RS232 digital signal output
Double four-bit high-brightness green and red LED digital tube
Product Selection Table :
| Content | Code Description | ||||
| PY500- | 0.1 level test accuracy, double display； | ||||
| Dimension | AH | 112x96x92 Hole size:96x92 | |||
| CH | 112x48x44 Hole size:96x48 | ||||
| Panel Specification | Dual 4-digit LED (main display window + second display window) | ||||
| Input signal | Proportional measurement with 4-wire strain sensor | ||||
| Open(active) | 1-point external digital input, which can be used to clear, tare, allow comparison output, etc. | ||||
|
Alarm (250VAC/3A,Resistive) |
2 points 0C gate input,100mA ( MAX ) | ||||
| External supply | Bl | DC 10V±2%, 200mA ( MAX ) | |||
| B2 | DC 5V±2% , 100mA ( MAX ) | ||||
| Transmitter(option)resolution: 1/3000; load capacity: 600Ω) | Al | Current output(4-20 )mA | |||
| A2 | Voltage output(0-10 ) V,( 0-5 ) V | ||||
| A3 | Relay output | ||||
| Communication (option) (optical isolation, speed: 2400, 4800. 9600, 19200. 38400, 57600. 115200) (communication address: 0-99) | SI | RS232 interface Selectable via software settings TCASCII or Modbus-RTU | |||
| S2 | RS485 interface Selectable via software settingsTCASCH or Modbus-RTU | ||||
|
|
