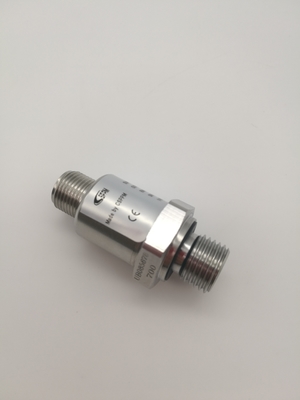

T319A Hydraulic Systems Pressure Transmitter
Product Introduction:
PPM-T319A sputtered thin film pressure sensor is designed for OEMs who require top of the line performance, reliability, and stability at an affordable price. The Model 3100 offers exceptional ±0.25% FS accuracy in pressure ranges from 75 PSI to 32,000 PSI; features an all welded stainless steel construction for a robust design and IP67 seal for moisture and humidity protection. The Model 3100 offers a variety of different outputs, pressure connectors, and electrical connectors to satisfy the most challenging application requirements. In addition, voltage units are available with a dual pressure/temperature output.
Applications :
•Power Generation
•Hydraulic Systems
•Booster Pump Systems
•Irrigation Systems
•Off Highway Vehicles
Technical Parameters :
| Performance Data | Physical Description | ||
| Accuracy1 | ±0.25% FS | Pressure Port | See Ordering Instructions |
| Thermal Effects 2 | Enclosure | IP67 (IP65 for Electrical Code A) | |
| Compensated Range °F(ºC) | -40 to +221 (-40 to +125) | Elec. Connections | See Ordering Instructions |
| Zero/Span Shift %FS/100°F (%FS/100ºC) | 0.83 (1.5) | Wetted Parts | 17-4PH SS (Diaphragm), 304 SS Fittings |
| Zero/Span Tolerance | ±0.5% of Span | Vibration | 40G Peak to Peak Sinusoidal to 2000Hz (Random Vibration: 20 to 1000Hz @ approx. 40G Peak per MIL-STD-810E) |
| Response Time | 1ms | ||
| Long Term Stability | ±0.2% FS for <1000 PSI (60 BAR) | Shock | Withstand free fall to IEC 68-2-32 procedure 1 |
| Proof/Burst Pressure | See Table | Weight | 35 Grams |
| Fatigue Life | Designed for more than 100M cycles | Electrical Data (Voltage)6 | |
| Temp. Output Range °F(ºC)3,4,5 | -40 to +221 (-40 to +125) | Circuit | 3-Wire (Exc, Out, Com) |
| Operating/Storage Temp °F(ºC)3,4,5 | -40 to +221 (-40 to +125) | Output |
1 to 6 VDC, 1 to 5 VDC, 0.5 to 4.5 VDC, 0 to 5 VDC, 0 to 10 VDC7 |
| Electrical Data (Ratiometric) | Excitation | 2 Volts above FS to max 30 Volts @ 4.5 mA (6.5mA Dual Output Version) | |
| Output | 0.5 to 4.5 VDC @ 4mA (6.5 mA on Dual Output Version) | ||
| Excitation | 5VDC ± 10% | Source & Sinks | 2mA |
| Options | Electrical Data (Current) | ||
|
Full miswire protection between all signal and power lines (any combination) Full short-circuit protection for Vout1 to 0V or Vout1 connected to supply, indefinitely. Ratiometric output not available Supply Voltage must be 4V above the maximum Vout1 output. This also accounts for worse-case customer output leads. |
Circuit | 2-Wire | |
| Output | 4 to 20mA | ||
| Excitation | 8 to 30 VDC (24 VDC max. above 110o C applications) | ||
| Max. Loop Resistance | (Supply Voltage-8) x50 ohms | ||
