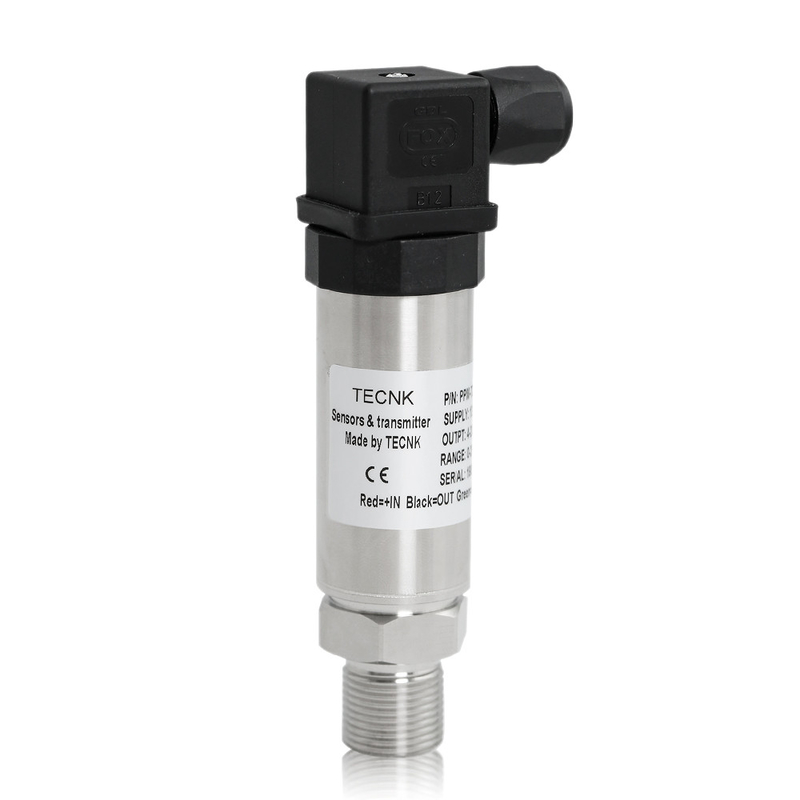

PPM-T230D 3 Wire 200MPa Pressure Transmitter Sensor For Pump

PPM-T230D 3 Wire 200MPa Pressure Transmitter Sensor For Pump

Brand Name: CSPPM
Model Number: PPM-T230D
MOQ: 1 PCS
Packaging Details: Standard export packing, including instructions and certificate
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Pressure Type:
Absolute Pressure, Sealed Reference Pressure, Ventilator Pressure
Measured Medium:
Non-corrosive Gas And Liquid To 316 Stainless Steel
Pressure Range:
0 ~ 6MPa… 10MPa… 200MPa
Output Signal:
4-20mA, 1-5VDC, 0-5VDC, 0-10VDC, 0.5-4.5 VDC Selectable
Mounting Thread:
M20 × 1.5, M14 × 1.5, G1 / 4, 1 / 4NPT, 1 / 2NPT
Electrical Interface:
Hirschmann Connector, Aerial Plug, Direct Outlet
Repeatability:
0.1% FS
Long-term Stability:
0.2% FS / Year (typical Value)
Supply Ability:
1000 pcs per month
High Light:

CE Pressure Transmitter Sensor

,

200MPa Pressure Transmitter Sensor

,

200MPa Pump Pressure Sensor

Product Description

0 ~200MPa PPM-T230D Pressure Test Pump Pressure Transmitter



Product Introduction:

PPM-T230D pressure transmitter adopts integrated design, laser welding seal, no rubber seal ring, long-term pressure fatigue shock before leaving the factory, long-term high and low temperature cycle aging and temperature compensation, anti-RF and electromagnetic interference, anti-high frequency high-voltage shock To ensure product stability and reliability. This series supports various parameter customization services.



Applications :

Dynamic and static pressure measurement of pneumatic equipment and hydraulic test benches

Well logging, platform on the well, high pressure pump, pressure test pump, blowout preventer, etc.

Hydraulic pump station, die-casting machine, bearing lubricant



Technical Parameters :

Measured medium : Non-corrosive gas and liquid to 316 stainless steel
Pressure Type : Absolute Pressure, Sealed Reference Pressure, Ventilator Pressure
Pressure Range: 0 ~ 6MPa… 10MPa… 200MPa
Power supply : 24VDC (10-32VDC)
Output signal : 4-20mA, 1-5VDC, 0-5VDC, 0-10VDC, 0.5-4.5 VDC selectable
Mounting thread : M20 × 1.5, M14 × 1.5, G1 / 4, 1 / 4NPT, 1 / 2NPT
Electrical interface Hirschmann connector, aerial plug, direct outlet
Repeatability : 0.1% FS
Non-linear : 0.2% FS, 0.1% FS, 0.05% FS optional
Comprehensive accuracy: 0.2% FS, 0.5% FS optional
Long-term stability 0.2% FS / year (typical value)
Working medium temperature : -40 ~ + 85 ℃
Working environment temperature : -20 ~ + 75 ℃



Definition of wiring:

Hirschmann Connector
  2-wire system 3-wire system
PPM-T230D 3 Wire 200MPa Pressure Transmitter Sensor For Pump 0 Power supply 1 1
Negative power 2 2
Signal positive 3
Direct outgoing
  2-wire system 3-wire system
PPM-T230D 3 Wire 200MPa Pressure Transmitter Sensor For Pump 1 Power supply red red
Negative power black black
Signal positive green



Dimensions in mm :

PPM-T230D 3 Wire 200MPa Pressure Transmitter Sensor For Pump 2
