| Brand Name: | CSPPM |
| Model Number: | PPM-T232C |
| MOQ: | 1 PCS |
| Packaging Details: | Standard export packing, including instructions and certificate |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |

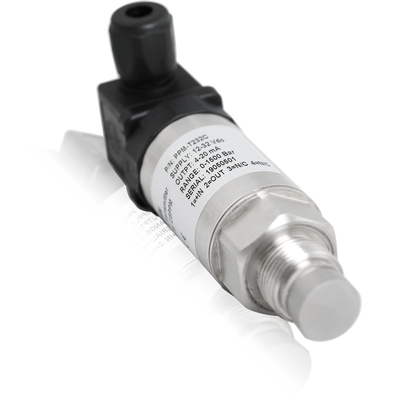

0 ～ 6MPa… 150MPa PPM-T232C Polyurethane Equipment Pressure Transmitter
Product Introduction:
The PPM-T232C flat film pressure transmitter is made of a special and sturdy stainless steel flush film with high performance intelligent operation compensation circuit. The all-stainless steel integrated structure ensures that the hard particle impact in the measured medium will not damage the sensor diaphragm. With anti-blocking, anti-particle impact, anti-vibration and other characteristics, it is suitable for high-temperature viscous and easy to block slurry, field, strong vibration, solid-liquid mixed fluid pressure measurement.
Applications :
Mud, coal slurry, pulp, crude oil, asphalt, etc., oil well measuring instruments
Environmental protection chemical coatings, polyurethane equipment, paint detection systems,
Food slurry and other solid-liquid mixtures etc.
Technical Parameters :
| Measured medium : | Non-corrosive gas and liquid to 17-4PH, 316L stainless steel |
| Pressure Type : | Sealed Reference Pressure, Ventilator Pressure |
| Measuring range: | 0 ～ 6MPa… 10MPa… 150MPa |
| Power supply : | 24VDC (12-32VDC) |
| Output signal : | 4-20mA, 1-5VDC, 0-5VDC, 0-10VDC selectable |
| Mounting thread : | M20 × 1.5, G1 / 2, 1 / 2NPT |
| Electrical interface : | Hirschmann connector, aerial plug, direct outlet |
| Non-linear : | 0.2% FS |
| Repeatability : | 0.2% FS |
| Accuracy: | 0.2% FS, 0.5% FS optional |
| Long-term stability : | 0.2% FS / year (typical value) |
| Working environment temperature : | -20 ～ + 75 ℃ |
| Working medium temperature : | -40 ～ + 85 ℃ |
Definition of wiring:
| Hirschmann Connector | |||
| 2-wire system | 3-wire system | ||
| |
Power supply | 1 | 1 |
| Negative power | 2 | 2 | |
| Signal positive | 一 | 3 | |
| Direct outgoing | |||
| 2-wire system | 3-wire system | ||
|
|
Power supply | red | red |
| Negative power | black | black | |
| Signal positive | 一 | green | |
Dimensions in mm :
|
|
