| Brand Name: | CSPPM |
| Model Number: | PPM-TG-1 |
| MOQ: | 1 PCS |
| Packaging Details: | Standard export packing, including instructions and certificate |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |

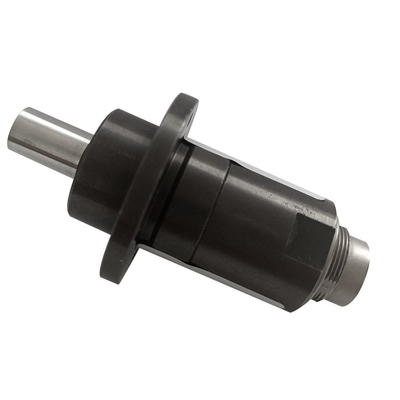

0-300N PPM-TG-1 Stranding Machines Tension Sensor
Product Introduction:
The product with high-quality steel and high-precision resistance strain gauges, it's processed by high-low temperature aging and thousands of times of pressure fatigue test to produce a mV signal output sensor. Stable output, strong anti-interference ability, Fast response (response time <2ms) Ingress protection IP65 .
Described from several aspects:
A:Material of Housing#45steel/304 stainless steel
B:Axle pin material,40CrNiMo
C:High stability, low temperature of product
D:Electrical connections, Aviation connector/Direct outlet, Ingress protection IP65
Applications :
Wire measuring the tension of thin wire and thin cable materials,
suitable for all kinds of stranding machines, equipment, cutting equipment sensors.
Technical Parameters :
| Measuring type | Tension |
| Measuring range | 0-300N |
| Power supply | 5VDC |
| Output signal | mV |
| Output sensitivity | 2.0±0.5mV/V |
| Nonlinearity | ≦0.15%FS |
| Repeatability | ≦0.15%FS |
| Accuracy | 0.5%FS |
| Long-term stability | ≦0.2%FS/Year |
| Operation temp | -25℃—85℃ |
| Zero temp. drift | ≦0.015%FS |
| FS temp. drift | ≦0.015%FS |
| Response time | <3ms |
| Output impedance | 350Ω |
| Insulation resistance | >1000MΩ/100VDC |
| Overpressure | 150%FS |
| Damage pressure | >300%FS |
| Materials |
Plug:40CRNIMO Housing:#45steel/304 stainless steel |
| Ingress protection | IP65 |
| Electrical connections | Aviation connector/Cable connection |
Definition of wiring:
Dimensions in mm :
|
|
