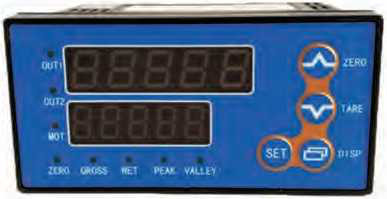

Series High-speed Weighing Force Measuring Instrument
Product introduction:
Designed for high-speed weighing
0.05-level measurement accuracy (measurement and control 15bps), display range: -19999 ~ 99999 proportional measurement, with 4-wire resistance strain bridge sensor
10-point polyline correction function
CTB6 measurement and control speed: 15, 120 times / second optional.
CTB6F measurement and control speed: 240, 480, 960, 1920 times / second optional. Suitable for different application sites
Total value, net value, peak value, bottom value processing and switching display
Standard 1-point input, different functions can be selected through parameters (clear, tare, comparison value allows output, display lock or peak and valley value to be cleared)
The standard alarm is a 2-point OC gate input. Can achieve multiple configuration control
Product Selection Table :
Content | Code Description | |||||
CTB6- | 0.05 level test accuracy, double display; | |||||
Dimension | 96x48x82 Hole Size:92x45 | |||||
Panel Specification | Dual 5-digit LED (main display window + second display window) | |||||
Input signal | Proportional measurement with 4-wire strain sensor | |||||
Open(active) | 1 Point external switch input, which can be used to clear, tare, allow comparison output, etc. | |||||
Alarm (250VAC/3A ,Resistive load) |
2 points OC gate output, 100mA (MAX) | |||||
External supply | Bl | DC 10V±2% , 200mA ( MAX ) | ||||
B2 | DC 5V±2% , 100mA ( MAX ) | |||||
Transmitter(option)resolution: 1/3000; load capacity: 600Ω) | Al | Current output(4-20 ) mA, ( 0-10 ) mA,( 0-20 )mA (only CTB6) | ||||
A2 | Voltage output(1-5 ) V, ( 0-5 ) V (only CTB6) | |||||
A3 | Voltage output(0-10)V (onlyCTB6 ) | |||||
AF1 | Current output(4-20 ) mA, ( 0-10 ) mA, ( 0-20 ) mA (only CTB6F) | |||||
AF2 | Voltage output(1-5 ) V, ( 0-5 ) V (only CTB6F ) | |||||
AF3 | Voltage output(0-10)V (onlyCTB6F ) | |||||
Communication (option) (optical isolation, speed: 2400, 4800. 9600, 19200. 38400, 57600. 115200) (communication address: 0-99) | S1 | RS232 interface Selectable via software settings TCASCII or Modbus-RTU | ||||
S2 | RS485 interface Selectable via software settings TCASCII or Modbus-RTU | |||||
Power Specification | V0 | 100 ~ 240V AC 50/60 Hz | ||||
VI | 10 ~ 24V AC 50/60 Hz ; 10 ~ 24V DC |
