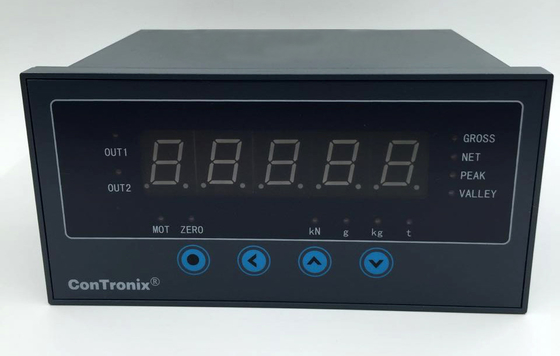

Economical Weighing Display Controller
Product Description:
1. The E Series’ Error is less than 0.05%F.S. Its adjusting and digital filtering functions can help reduce the errors of the sensors and transmitters so as to effectively enhance the accuracy of the measurements and control of the system.
2. It is adaptable to such signals as voltage, current, RTD, T/C, mV, Potentiometer, Pressure Gauges with Resistance Transmitter etc.
3. Re-Transmitted Output can provide other devices with the displaying value in the form of standard current or voltage output. The displaying value is measured and transferred by the instrument.
4. It has full-opened, high-speed, high-efficiency network communication interface, which can actualize total digital communication and control between PC and the Es. The unique function of Controlling Right Transfer can control the alarm output and the Re-Transmitted Output of the instrument directly. The time for reading per measurement data is less than 10ms.
5. BCD code interface support.
6.It provides printing interface and printing unit with hardware clock, which can actualize printing functions by manual, timing or alarm driving. If the intelligent printing unit is chosen, one printer can be shared by muti-instruments.
7.The Recording Unit is capable of recording 260,000 measured data and the recording interval can be set. It provides effective measures for data analysis and fault diagnosis.
8.Different extend dimensions and panel types are provided for flexible selection. The LED, LCD and light column display are flexible choices.
9. 1″~ 12″large screen display is available.
| Code | |||||||||||
| PPM-TC1CE | Accuracy:0.05%FS , measurement speed: 5 times per second | ||||||||||
| Dimension | AH | 160×80×125 Opening dimension:152×76 | |||||||||
| B | 96×96×112 Opening dimension:92×92 | ||||||||||
| CH | 96×48×112 Opening dimension:92×45 | ||||||||||
|
Faceplate
(2,3为选件) |
5-bit LED | ||||||||||
| Input signal | E | Thermocouple(K/S/R/B/N/E/J/T)； | |||||||||
| R | Thermal resistance(Pt100/Cu100/Cu50/BA1/BA2/G53)； | ||||||||||
| I | (4-20)mA,(0-10)mA,(0-20)mA； | ||||||||||
| V | (0-5)V,(1-5)V,(0-10)V； | ||||||||||
| M | mV | ||||||||||
| Alarm(optional) | T1～4 | T3,T4 only for AH, B | |||||||||
| Re-transmitted output(optional)(Resolution:1/3000；load capacity:600Ω) | A1 |
(4～20)mA,(0～10)mA,(0～20)mA.
|
|||||||||
| A2 | (1～5)V,(0～5)V | ||||||||||
| A3 | (0～10)V | ||||||||||
| A4 | (-5V～+5V) | ||||||||||
| A5 | (-10V～+10V) | ||||||||||
| Power supply output(optional) | B1 | 24V±5% ≤50mA | |||||||||
| B1G | 24V±5% ≤100mA | ||||||||||
| B2 | 12V±5% ≤50mA | ||||||||||
| B2G | 12V±5% ≤100mA | ||||||||||
| B3 | Precise Constant Current Source, 10V DC±2%, 30ppm, ＜100mA | ||||||||||
|
Communication interface(optional)
|
S1 | TC ASCII RS232 | |||||||||
| S2 | TC ASCII RS485 | ||||||||||
| M1 | Modbus-RTU RS232 | ||||||||||
| M2 | Modbus-RTU RS485 | ||||||||||
| Print Funcation(optional) | P | ||||||||||
| Power supply | V0 | 100-240V AC 50/60 Hz | |||||||||
| V1 | 10-24V AC 50/60 Hz；10-24V DC (only CH) | ||||||||||
|
|
| Brand Name: | CSPPM |
| Model Number: | PPM-TC1CE |
| MOQ: | 1 |
| Packaging Details: | Standard package |
Economical Weighing Display Controller
Product Description:
1. The E Series’ Error is less than 0.05%F.S. Its adjusting and digital filtering functions can help reduce the errors of the sensors and transmitters so as to effectively enhance the accuracy of the measurements and control of the system.
2. It is adaptable to such signals as voltage, current, RTD, T/C, mV, Potentiometer, Pressure Gauges with Resistance Transmitter etc.
3. Re-Transmitted Output can provide other devices with the displaying value in the form of standard current or voltage output. The displaying value is measured and transferred by the instrument.
4. It has full-opened, high-speed, high-efficiency network communication interface, which can actualize total digital communication and control between PC and the Es. The unique function of Controlling Right Transfer can control the alarm output and the Re-Transmitted Output of the instrument directly. The time for reading per measurement data is less than 10ms.
5. BCD code interface support.
6.It provides printing interface and printing unit with hardware clock, which can actualize printing functions by manual, timing or alarm driving. If the intelligent printing unit is chosen, one printer can be shared by muti-instruments.
7.The Recording Unit is capable of recording 260,000 measured data and the recording interval can be set. It provides effective measures for data analysis and fault diagnosis.
8.Different extend dimensions and panel types are provided for flexible selection. The LED, LCD and light column display are flexible choices.
9. 1″~ 12″large screen display is available.
| Code | |||||||||||
| PPM-TC1CE | Accuracy:0.05%FS , measurement speed: 5 times per second | ||||||||||
| Dimension | AH | 160×80×125 Opening dimension:152×76 | |||||||||
| B | 96×96×112 Opening dimension:92×92 | ||||||||||
| CH | 96×48×112 Opening dimension:92×45 | ||||||||||
|
Faceplate
(2,3为选件) |
5-bit LED | ||||||||||
| Input signal | E | Thermocouple(K/S/R/B/N/E/J/T)； | |||||||||
| R | Thermal resistance(Pt100/Cu100/Cu50/BA1/BA2/G53)； | ||||||||||
| I | (4-20)mA,(0-10)mA,(0-20)mA； | ||||||||||
| V | (0-5)V,(1-5)V,(0-10)V； | ||||||||||
| M | mV | ||||||||||
| Alarm(optional) | T1～4 | T3,T4 only for AH, B | |||||||||
| Re-transmitted output(optional)(Resolution:1/3000；load capacity:600Ω) | A1 |
(4～20)mA,(0～10)mA,(0～20)mA.
|
|||||||||
| A2 | (1～5)V,(0～5)V | ||||||||||
| A3 | (0～10)V | ||||||||||
| A4 | (-5V～+5V) | ||||||||||
| A5 | (-10V～+10V) | ||||||||||
| Power supply output(optional) | B1 | 24V±5% ≤50mA | |||||||||
| B1G | 24V±5% ≤100mA | ||||||||||
| B2 | 12V±5% ≤50mA | ||||||||||
| B2G | 12V±5% ≤100mA | ||||||||||
| B3 | Precise Constant Current Source, 10V DC±2%, 30ppm, ＜100mA | ||||||||||
|
Communication interface(optional)
|
S1 | TC ASCII RS232 | |||||||||
| S2 | TC ASCII RS485 | ||||||||||
| M1 | Modbus-RTU RS232 | ||||||||||
| M2 | Modbus-RTU RS485 | ||||||||||
| Print Funcation(optional) | P | ||||||||||
| Power supply | V0 | 100-240V AC 50/60 Hz | |||||||||
| V1 | 10-24V AC 50/60 Hz；10-24V DC (only CH) | ||||||||||
