| Brand Name: | CSPPM |
| Model Number: | PPM-T155 |
| MOQ: | 1 |
| Packaging Details: | Standard package |

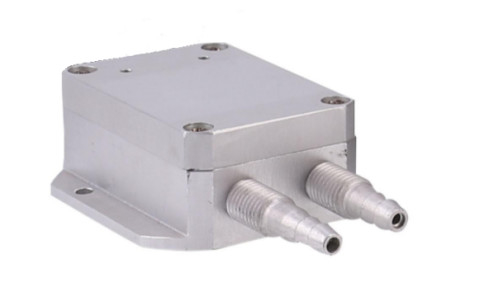

Differential Pressure Transmitter
Product Introduction:
This series of differential pressure transmitters use micromechanical piezoresistive sensor technology, all stainless steel structure design, small size, light weight, easy installation, good anti-vibration performance, using single-chip intelligent compensation, stable and reliable performance, the product adjusts zero and full externally. Degree, suitable for differential pressure measurement of various gas, liquid micro-range and low-medium range.
Applications :
Differential pressure measurement and flow control of various gases and liquids
Differential pressure measurement of pipelines in petroleum, chemical, hydrology, power stations, water supply and drainage projects, boiler flue gas, wine making, glass manufacturing, etc. Light Textile, Environmental Engineering, Metrology, Scientific Research , Planes, tanks, etc.
Technical Parameters :
| Measured medium: | gas |
| Pressure type: |
Differential pressure
|
| Differential pressure measurement range: | 0 ～ 25Pa ～ 5kPa ～ 10kPa..1MPa |
| Static pressure: | 600% full scale |
| Allowable overvoltage in forward direction: | 200% FS |
| Allowable overvoltage in negative direction: | 100% FS |
| Power supply: | 10-32VDC |
| Pressure output signal: |
4-20mA, 0-5VDC, 1-5VDC, 0-10VDC can be selected
|
| Non-linearity: | 0.2% |
| Repeatability: | 0.2% |
Definition of wiring:
| Direct outgoing | ||
| Cable color | ||
|
Power supply | red |
| Negative power | black | |
| Signal positive | green | |
| Signal negative | white | |
Dimensions in mm :
|
|
