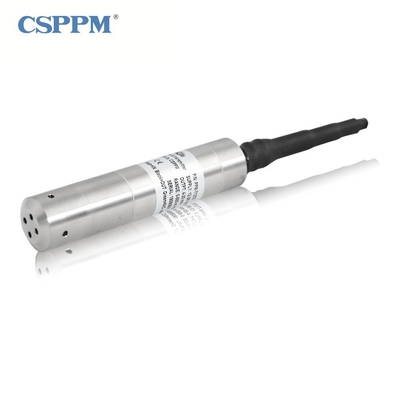

CSPPM Liquid Level Transducer Stainless Steel 1Cr18Ni9Ti

CSPPM Liquid Level Transducer Stainless Steel 1Cr18Ni9Ti

Brand Name: CSPPM
Model Number: PPM-T127E
MOQ: 1 PCS
Packaging Details: Standard package
Payment Terms: Western Union, T/T, L/C
Detail Information
Place of Origin:
China
Certification:
CE
Measuring Range:
0 ~ 0.5m, 1m, 2m, 3m, 5m, 10m, 15m ... 200m
Overload Capacity:
300%
Power Supply Range:
12 ~ 36VDC
Signal Output::
4 ~ 20mA(two Wire), Digital Signal: RS485(four Wire)
Accuracy:
0.075% FS, 0.1% FS, 0.2% FS, 0.5% FS (including Non-linear, Repetitive, Hysteresis)
Resolution:
0.01% FS
Working Medium Temperature:
-30 ~ + 80 ℃ High-temperature Type Customization (-20 ~ + 150 ℃ / 250 ℃)
Working Environment Temperature:
-30 ~ + 70 ℃
Protection Class:
IP68
Interface And Housing:
Stainless Steel 1Cr18Ni9Ti
High Light:

CSPPM Liquid Level Transducer

,

1Cr18Ni9Ti Liquid Level Transducer

,

CSPPM Water Level Measurement

Product Description

0 ~ 200m PPM-127E Circulating Water Input Type Liquid Level Transmitter



Product Introduction:

The PPM-127E input type liquid level transmitter uses digital technology to collect real-time liquid level and temperature signals on the spot. After the CPU performs calculation compensation and parameter correction, it is converted by the D / A circuit into a high-precision two-wire system 4 ~ 20mA analog The signal and RS485 digital interface signal ensure the high precision and high reliability of the product. The level transmitter's zero point, full scale, unit, address and other parameters are open to users, so that when users need to adjust the product, or need to monitor multiple products at the same time, through RS485 interface and dedicated data cables and software , Perform on-site pressureless calibration and adjustment. This series offers customized services.



Applications :

Seepage level measurement for constant pressure water supply, water storage, drainage, sewage treatment systems, urban groundwater, lakes, reservoirs, dams, open oil tanks, circulating water, water towers, coolants, etc.



Technical Parameters :

Measuring range: 0 ~ 0.5m, 1m, 2m, 3m, 5m, 10m, 15m ... 200m
Overload capacity : 300%
Power supply range: 12 ~ 36VDC
Signal output: 4 ~ 20mA(two wire), digital signal: RS485(four wire)
Accuracy : 0.075% FS, 0.1% FS, 0.2% FS, 0.5% FS (including non-linear, repetitive, hysteresis)
Resolution : 0.01% FS
Working medium temperature: -30 ~ + 80 ℃ High-temperature type customization (-20 ~ + 150 ℃ / 250 ℃)
Working environment temperature: -30 ~ + 70 ℃
Protection class : IP68
Interface and housing : Stainless steel 1Cr18Ni9Ti
Sensor diaphragm: 316L stainless steel, 96% alumina ceramic
Seals: All-in-one stainless steel construction, no plastic seals
Cable: Φ7.5mm polyethylene (or polyurethane) air conducting cable
Installation method: input



Definition of wiring:

  Direct outgoing
    2-wire system 4-wire system

CSPPM Liquid Level Transducer Stainless Steel 1Cr18Ni9Ti 0

CSPPM Liquid Level Transducer Stainless Steel 1Cr18Ni9Ti 1

Power supply Red Red
Negative power Black Black
A Green
  B   White



Dimensions in mm :

CSPPM Liquid Level Transducer Stainless Steel 1Cr18Ni9Ti 2
