| Brand Name: | CSPPM |
| Model Number: | PPM-YB-3000 |
| MOQ: | 1 PCS |
| Packaging Details: | Standard export packing, including instructions and certificate |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Product Introduction:

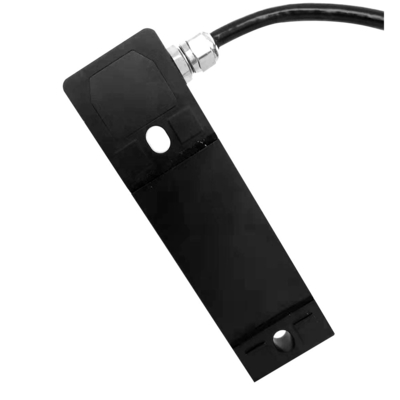

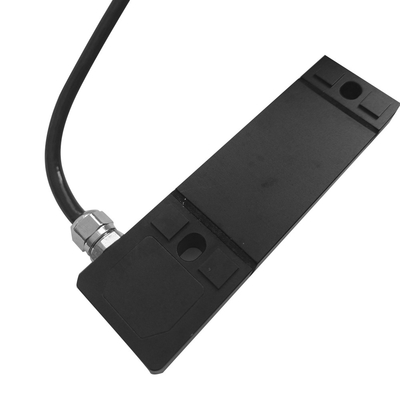

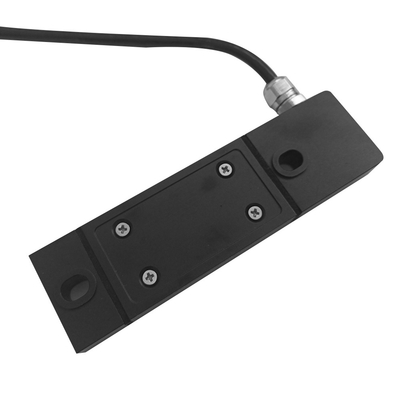

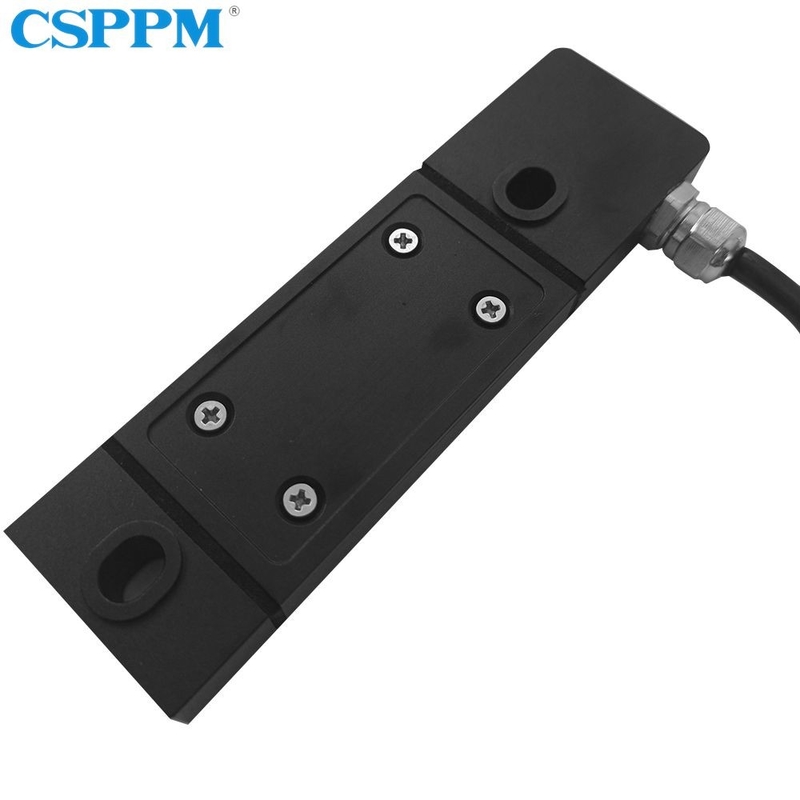

PPM-YB-3000 was designed for measuring of dynamic or static surface strain on stiff steel constructures. The Strain transducer is screwed on the component making a positive connection between the extensometer and the object. Under mechanical stress on the target construction caused strains and sprains. The sensor is simply srewed onto the component and convert the deformation on the fix platen, which is proportional to the length change, into an electrical output signal.
The strain transmitter have stainless steel construction and meets the requirements of protection class IP65. The strain transducer has been designed for applications in which there is a need to measure the deformation due to external forces acting on an existing component. Due to the small space requirements and the easy installation, PPM-YB-3000 are ideal for retrofitting a force measurement and load monitoring
Typical Application:
Technical Parameters :
| Measuring type | Micro strain, linear deformation |
| Measuring range | ±3000με |
| Power supply | 5VDC |
| Output signal | mv |
| Nonlinearity | ≦0.015%FS |
| Repeatability | ≦0.02%FS |
| Accuracy | Accuracy error:≤2%FS |
| Long-term stability | ≦0.5%FS/Year |
| Operation temp | -25℃—85℃ |
| Zero temp. drift | ≦0.3%FS |
| FS temp. drift | ≦0.3%FS |
| Response time | <3ms |
| Output impedance | 1KΩ |
| Insulation resistance | >1000MΩ/100VDC |
| Overpressure | 120%FS |
| Damage pressure | >300FS |
| Materials | 7075Aluminium Alloy |
| Ingress protection | IP65 |
| Electrical connections | Cable connection |
Definition of wiring:
Dimensions in mm :
|
|
