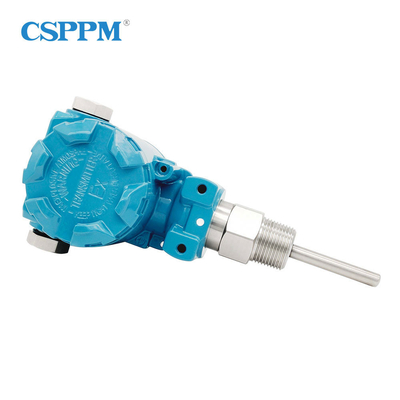

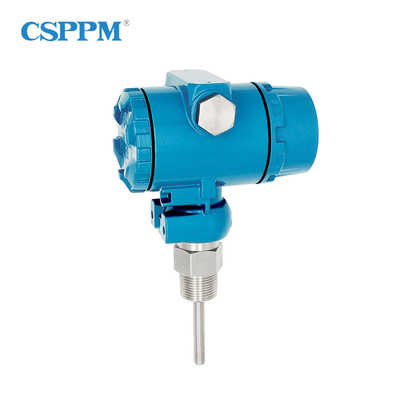

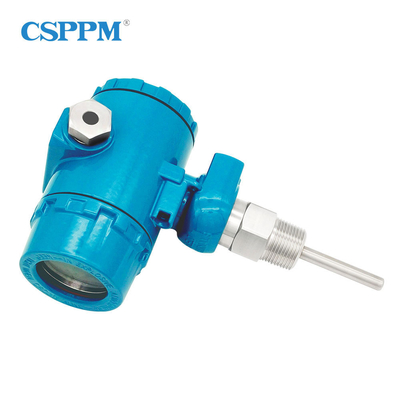

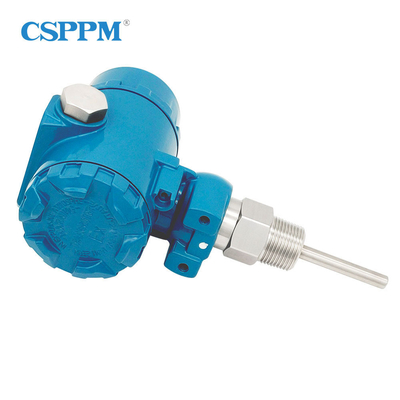

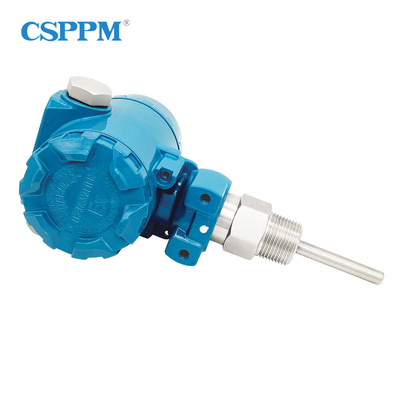

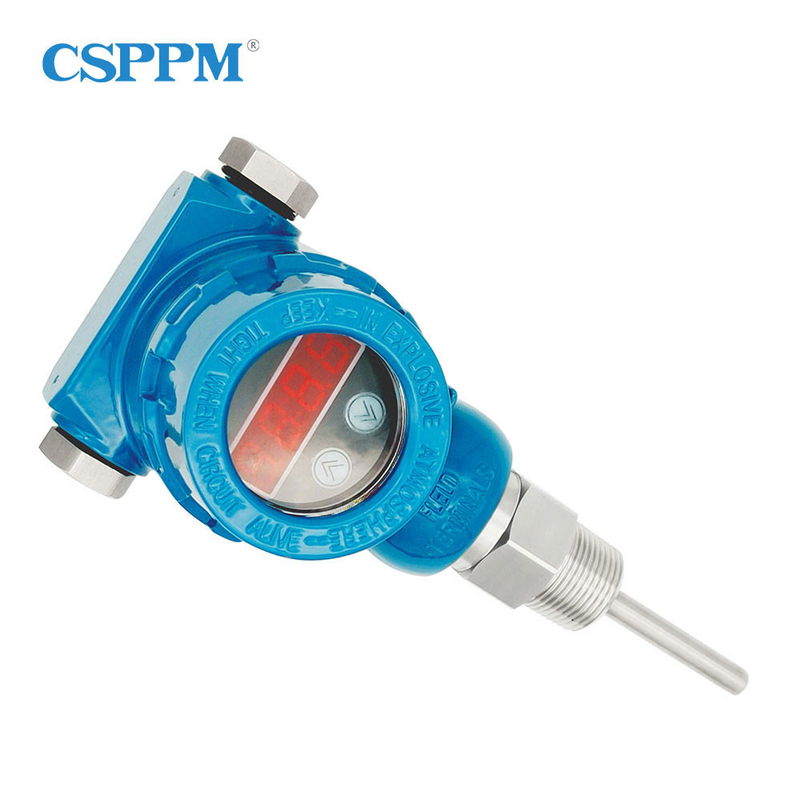

IP65 Electronic Temperature Transmitter Sensor Shock Resistant

IP65 Electronic Temperature Transmitter Sensor Shock Resistant

Brand Name: CSPPM
Model Number: PPM-WZPB-2088
MOQ: 1
Packaging Details: Standard package
Payment Terms: Western Union, T/T, L/C
Detail Information
Place of Origin:
China
Certification:
CE
Measuring Range:
-200 ~ 650 ℃
Power Supply:
4-20mA
Output:
4-20mA, 0-5VDC, 0-10VDC Are Optional
Accuracy:
0.2%, 0.5% Optional
Working Ambient Temperature:
-40-85 ℃
Temperature Measuring Element:
Pt100, Pt1000, T, K Are Optional
Protection Tube Diameter:
Ф4 ~ Ф16, Ф18, Ф20, Ф22, Ф28, Ф35, Ф40 Or Specified
Insertion Length:
50, 100, 150, 200, 300, 400, 500, 750, 1000 Or Specified
Ambient Humidity:
95% RH, Non-condensing
High Light:

Electronic Temperature Transmitter Sensor

,

IP65 Temperature Transmitter Sensor

,

95% RH Thermal Temperature Sensor

Product Description

Accuracy 0.5% Electronic Temperature Transmitter



Features

1. They can measure temperatures of liquid, steam,gas and solid in producing.
2. Characteristics are shock resistant, high-temperature resistant and long life.
3. Used for temperature measuring and automatic controlling in scope from -200 to 600ºC.



Product introduction:

PPM-WZPB-2088 temperature transmitter organically integrates the temperature sensing element (thermal resistance or thermocouple) with the

signal conversion and amplification unit, and is used to measure liquids, steam and other gaseous media in the range of -200ºC-650ºC degrees

in various processes. The temperature of the solid surface.

Features simple structure, easy installation, use and easy maintenance.



Applications

Petroleum, chemical, metallurgy

machinery, electricity, steel,

glass, ceramics, heat treatment



Technical Parameters :

Measuring range: -200 ~ 650 ℃
Power supply : 4-20mA
Output: 4-20mA, 0-5VDC, 0-10VDC are optional
Accuracy: 0.2%, 0.5% optional
Working ambient temperature: -40-85 ℃
Ambient temperature influence: 0.25% / 10 ℃
Temperature measuring element: Pt100, Pt1000, T, K are optional
Protection tube diameter: Ф4 ~ Ф16, Ф18, Ф20, Ф22, Ф28, Ф35, Ф40 or specified
Process connection method: No fixing device, fixed thread, movable thread, movable flange, fixed flange GB / ANSI standard optional
Insertion length : 50, 100, 150, 200, 300, 400, 500, 750, 1000 or specified
Protection tube material : 316L stainless steel, nickel alloy
Nominal pressure: 20MPa, ≤10MPa, ≤4.0MPa, ≤2.5MPa, normal pressure optional
Protection class: IP65
Thermal response time: 0.3S
Ambient humidity: 95% RH, non-condensing



Definition of wiring:



  2-wire system 3-wire system
IP65 Electronic Temperature Transmitter Sensor Shock Resistant 0 Power supply red red
Negative power black black
Signal positive green



Dimensions in mm :

IP65 Electronic Temperature Transmitter Sensor Shock Resistant 1
