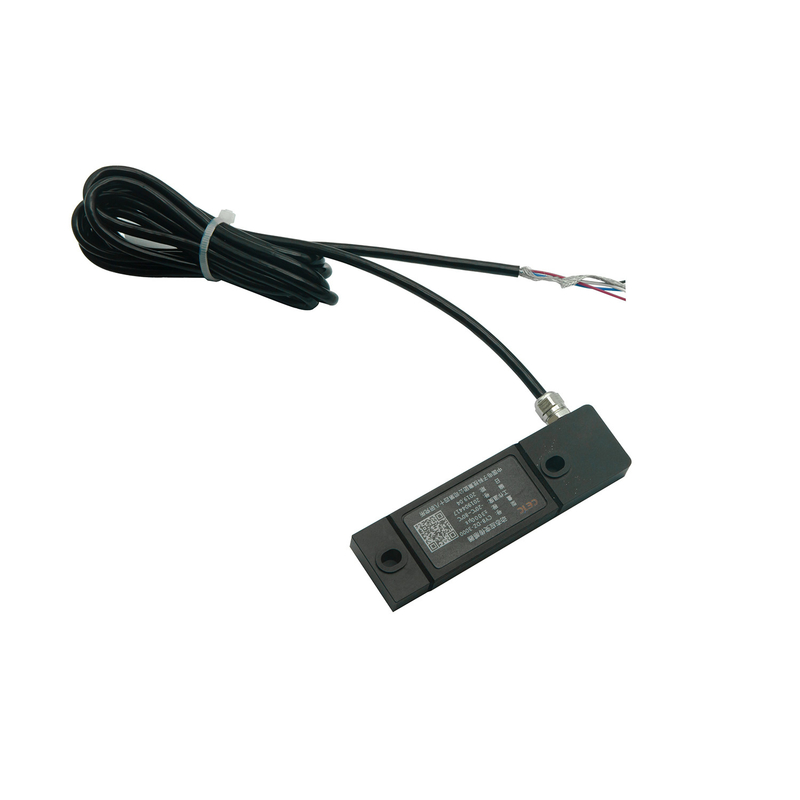

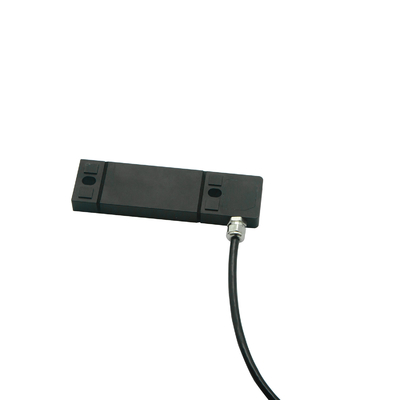

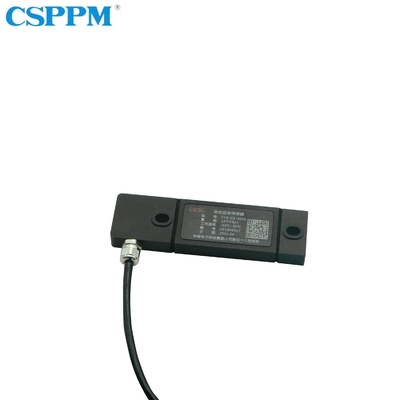

Robust strain sensor for harsh outdoor environment

Robust strain sensor for harsh outdoor environment

Brand Name: CSPPM
Model Number: PPM-YB-3000
MOQ: 1 PCS
Packaging Details: Standard export packing, including instructions and certificate
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Measuring Type:
Micro Strain, Linear Deformation
Measuring Range:
±3000με
Power Supply:
5VDC
Output Signal:
Mv
Nonlinearity:
≦0.015%FS
Repeatability:
≦0.02%FS
Accuracy:
Accuracy Error:≤2%FS
Long-term Stability:
≦0.5%FS/Year
Operation Temp:
-25℃—85℃
Zero Temp. Drift:
≦0.3%FS
Supply Ability:
1000 pcs per month
Product Description

Strain sensor Easy mounting with two screws



Product Introduction:

Strain sensor for dynamic applications, with process tare Cyclic with analog signal path for fast response time. Ideally suited for force measurements on presses and injection molding machines.

  • Analogue signal path with fast response time
  • For dynamic applications with external input for automatic zero-point adjustments, qualified for periodical and recurring zero point adjustment
  • For indirect force and deformation measurements
  • With integrated amplifier with ± 10 V or 4-20 mA



Applications :

  • Indirect force measurement by detecting smallest strains allows efficient control of relevant process parameters (e.g., presses, assembly machines, welding machines, jigs, feed force)
  • Limit value monitoring to avoid overloads
  • Monitoring and documentation of process forces for increased process reliability (eg joining forces, assembly machines, pressing force, detection of tool breakage and wear)

Technical Parameters :

Measuring type Micro strain, linear deformation
Measuring range ±3000με
Power supply 5VDC
Output signal mv
Nonlinearity ≦0.015%FS
Repeatability ≦0.02%FS
Accuracy Accuracy error:≤2%FS
Long-term stability ≦0.5%FS/Year
Operation temp -25℃—85℃
Zero temp. drift ≦0.3%FS
FS temp. drift ≦0.3%FS
Response time <3ms
Output impedance 1KΩ
Insulation resistance >1000MΩ/100VDC
Overpressure 120%FS
Damage pressure >300FS
Materials 7075Aluminium Alloy
Ingress protection IP65
Electrical connections Cable connection



Definition of wiring:
