Industrial Pressure Sensor
>

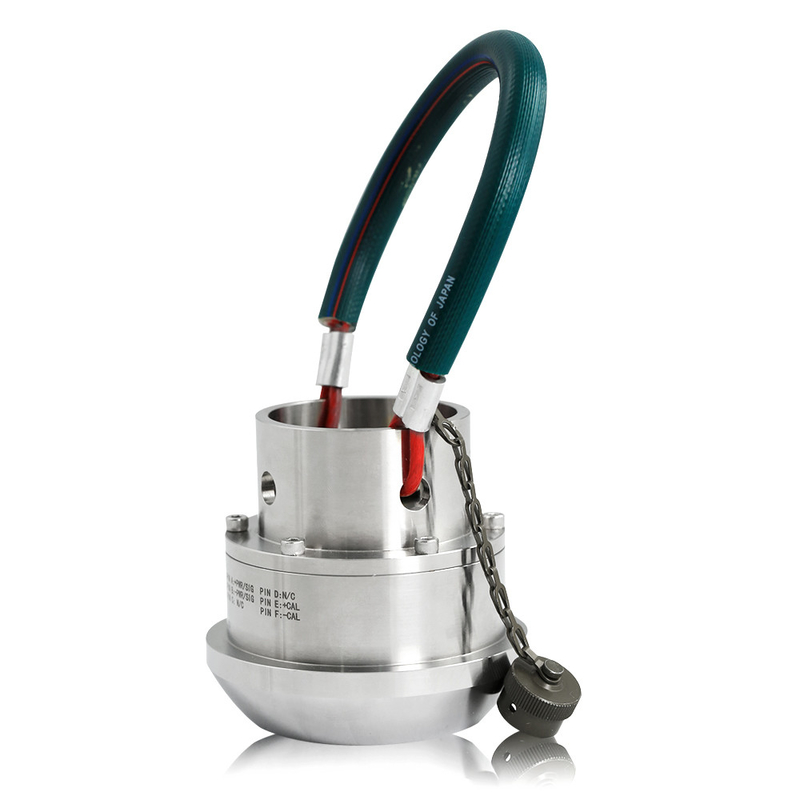

CSPPM T293A Hammer Union Pressure Sensor

CSPPM T293A Hammer Union Pressure Sensor

Brand Name: CSPPM
Model Number: PPM-T293A
MOQ: 1pcs
Price: CSPPM
Packaging Details: Standard export packing, including instructions and certificate
Detail Information
Place of Origin:
China
Certification:
CE
Tested Media:
Wet Soil,Oil,Corrosive Liquidand Gas
Pressure Type:
Gauge Pressure(G), Sealed Pressure(S), Vent Pressure(V)
Full Scale Pressure Range:
0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi
Supply Voltage:
10-32VDC
Output Signal:
4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Combined Accuracy:
0.5%FS, 0.25%FS
Long-Term Stability:
≤ ± 0.1%FS/Year
Working Medium Temperature:
-40~ +90ºC
Supply Ability:
1000pcs per month
Product Description



Technical Parameters :

Tested Media : Wet Soil,Oil,Corrosive liquidand gas
Pressure type: Gauge pressure(G), Sealed pressure(S), Vent Pressure(V)
Full Scale Pressure Range : 0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi.
Supply Voltage : 10-32VDC
Output Signal: 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation : “1502” Hammer Union
Electrical Connection : Aviation connector or Direct outgoing
Combined Accuracy : 0.5%FS, 0.25%FS
Long-Term Stability: ≤ ± 0.1%FS/Year
Working medium temperature : -40~ +90ºC
Operating Temperature : -40~ +90ºC









Dimensions in mm :

CSPPM T293A Hammer Union Pressure Sensor 0



Tags: crankcase pressure sensor





What is the crankcase pressure sensor and its role in automotive engines?



The crankcase pressure sensor, also known as a crankcase pressure transducer or sensor, is a vital component in automotive engines, especially those with positive crankcase ventilation (PCV) systems. Its primary role is to monitor and measure the pressure inside the engine's crankcase.



Role in Automotive Engines:

The crankcase pressure sensor serves several essential functions in an automotive engine:



Crankcase Pressure Monitoring: The sensor continuously monitors the pressure within the engine's crankcase, which is the area that houses the engine's crankshaft, connecting rods, and other components.



Emissions Control: One of the primary purposes of the crankcase pressure sensor is to help control emissions. By monitoring the pressure in the crankcase, it can signal the engine control module (ECM) to adjust the flow of gases through the PCV system. This ensures that crankcase gases, including harmful hydrocarbons, are properly managed and routed to the intake manifold for combustion, reducing harmful emissions.



Engine Efficiency: Accurate monitoring of crankcase pressure contributes to engine efficiency. Maintaining the correct pressure allows the engine to operate optimally, reducing oil leaks and improving overall performance.



Early Issue Detection: The sensor can detect irregularities in crankcase pressure that may indicate issues such as excessive blow-by, clogged PCV valves, or problems with the engine's ventilation system. This early detection helps with preventive maintenance and reduces the risk of engine damage.



How the Crankcase Pressure Sensor Works:



The crankcase pressure sensor uses various technologies to measure the pressure within the crankcase. Common methods include strain gauges, piezoelectric elements, or capacitive sensors. As crankcase pressure changes due to factors like engine load and blow-by, these sensors detect these variations and convert them into electrical signals. The ECM processes these signals and, based on the data, adjusts the PCV system to maintain the desired pressure and emission control.



Significance in Automotive Engines:

The crankcase pressure sensor is significant for several reasons:



Emissions Compliance: It helps vehicles comply with emissions standards by efficiently managing and reducing harmful gases that can escape from the crankcase.



Engine Health: Monitoring crankcase pressure is crucial for early detection of issues that can affect engine health, preventing costly repairs and engine damage.



Performance: Proper crankcase pressure management contributes to engine efficiency and overall vehicle performance.
