Pressure Transmitter Sensor
>
Adjustable 4-20mA Output Water Gas Oil Pressure Transducer 0-5000/10000/20000 psi

Adjustable 4-20mA Output Water Gas Oil Pressure Transducer 0-5000/10000/20000 psi

Brand Name: CSPPM
Model Number: PPM-T293A
MOQ: 1pcs
Price: CSPPM
Supply Ability: 1000pcs per month
Detail Information
Place of Origin:
China
Certification:
CE
Tested Media:
Wet Soil,Oil,Corrosive Liquidand Gas
Pressure Type:
Gauge Pressure(G), Sealed Pressure(S), Vent Pressure(V)
Full Scale Pressure Range:
0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi
Supply Voltage:
10-32VDC
Output Signal:
4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation:
“1502” Hammer Union
Electrical Connection:

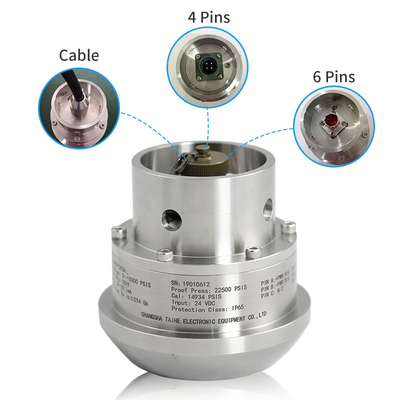

Aviation Connector Or Direct Outgoing
Combined Accuracy:
0.5%FS, 0.25%FS
Long-Term Stability:
≤ ± 0.1%FS/Year
Working Medium Temperature:
-40~ +90ºC
Operating Temperature:
-40~ +90ºC
Supply Ability:
1000pcs per month
Product Description

5000/10000/20000 psi High accuracy Water Gas Oil Pressure Sensor Transducer





■ 4-20 mA, 2-wire Output

■ 0.25% Accuracy

■ Shock & Vibration Resistant

■ Zero & Span Adjustments

■ All-welded Construction

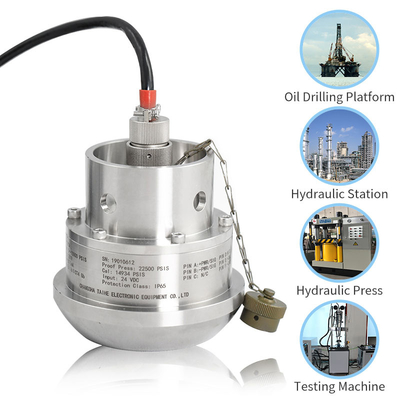

Applications

■ Oil & Gas Drilling

■ Mud Pumps / Mud Logging

■ Fracturing

■ Acidizing

■ Cementing

■ Standpipe

■ Stimulation

■ Well Head Measurement

■ Choke & Kill

■ Coiled Tubing



Technical Parameters :

Tested Media : Wet Soil,Oil,Corrosive liquidand gas
Pressure type: Gauge pressure(G), Sealed pressure(S), Vent Pressure(V)
Full Scale Pressure Range : 0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi.
Supply Voltage : 10-32VDC
Output Signal: 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation : “1502” Hammer Union
Electrical Connection : Aviation connector or Direct outgoing
Combined Accuracy : 0.5%FS, 0.25%FS
Long-Term Stability: ≤ ± 0.1%FS/Year
Working medium temperature : -40~ +90ºC
Operating Temperature : -40~ +90ºC



Definition of wiring:

Adjustable 4-20mA Output Water Gas Oil Pressure Transducer 0-5000/10000/20000 psi 0

Adjustable 4-20mA Output Water Gas Oil Pressure Transducer 0-5000/10000/20000 psi 1

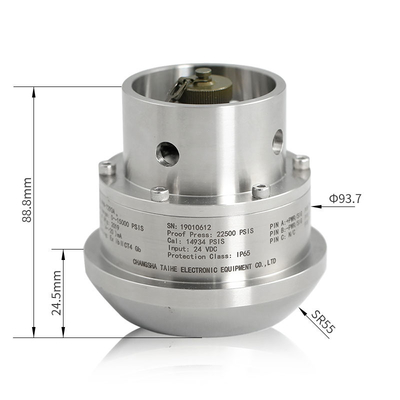

Dimensions in mm :

Adjustable 4-20mA Output Water Gas Oil Pressure Transducer 0-5000/10000/20000 psi 2

Tagshammer union pressure transudcer , fuel level sensor , water level sensor




What is Water Gas Oil Pressure Transformer?

A water gas oil pressure transformer is a transformer that uses a combination of water, gas, and oil as the insulating medium to transform electrical energy from one voltage level to another. This type of transformer is typically used in harsh or hazardous environments, where traditional oil-filled transformers may not be suitable. The cooling properties of water and gas help to dissipate heat generated during operation, while the insulating properties of oil help to protect against electrical arcs and breakdowns.



How does Water Gas Oil Pressure Transformer work? What is its principle?

The water gas oil pressure converter is a device that converts high-pressure hydraulic fluids into high-pressure air or gas while maintaining a constant output pressure.

The principle behind this converter is based on Pascal's law, which states that pressure applied to a confined fluid will be transmitted in all directions throughout the entire fluid. In this case, the fluid is usually oil and it is confined to a closed chamber, which is separated from the compressed air or gas chamber by a piston or diaphragm.

When high-pressure oil is introduced into a sealed chamber, it applies pressure to the piston or diaphragm, thereby compressing the air or gas in another chamber. This compression increases the pressure of air or gas, which can then be used for various purposes, such as providing power for pneumatic tools or operating machinery.

The working principle of a transformer is to maintain balance between the input and output pressure chambers. The control valve is used to regulate the oil flow rate entering the closed chamber, thereby adjusting the amount of pressure applied to the piston or diaphragm, and thereby adjusting the output pressure of the air or chamber.
